10.5MM XMAX FOR CLEAN BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12BG100 |
|
4 0hms
Item Price: $424.74 |
|
|
8 0hms
Item Price: $424.74 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

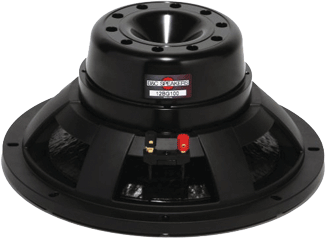

12BG100 - 12" HIGH POWER WOOFER |
|
10.5MM XMAX FOR CLEAN BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12BG100 |
|
4 0hms
Item Price: $424.74 |
|
|
8 0hms
Item Price: $424.74 |
|
|
SPEAKER
MODEL |
12BG100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power | 2,000 Watts |
|
Frequency
Response |
40Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
93dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiber Glass |
| Winding Depth | 1.05" / 26.5mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.15T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Treated Paper |
| Cone Shape | Radial |
| Surround Shape | Roll |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Voice Coil | Copper |
| Former | Glass Fiber |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.5" / 319mm |
| Bolt Circle Diameter | 11.77" / 299mm |
| Baffle Cutout Diameter | 11.1" / 281mm |
| Depth | 5.4" / 137mm |
| Flange & Gasket Thickness | .5" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 18 lbs./ 8.2 kg. |
| Shipping Weight | 19.6 lbs./ 8.9 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
39 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .35 |
| Mechanical Q (Qms) | 6.8 |
| Total Q (Qts) | .33 |
| Compliance Equiv. Vol. (Vas) | 41 Liters/1.45cu. ft. |
| Voice Coil Overhang (Xmax) | 10.5mm |
| Reference Efficiency | .7% |
| BL Factor | 23 T-M |
| Surface Area of Cone (Sd)m2 | 0.0809m2 |
| Coil Inductance (Le) | 1.6mH |

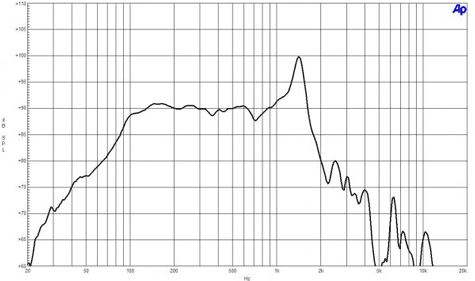

| SPL VS. FREQUENCY | |
 |
|

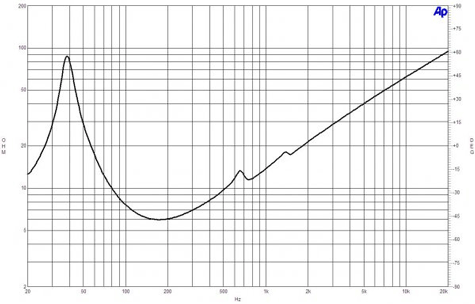

| IMPEDANCE | |
 |
|

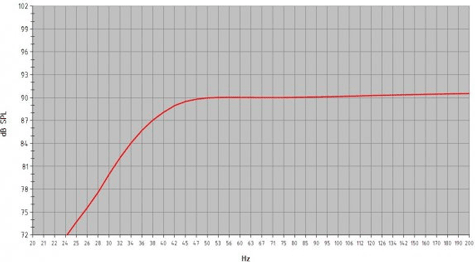

| FREQUENCY RESPONSE IN BASS REFLEX CABINET | |
 |
CABINET SPECS |
|
|
