B & C  PROFESSIONAL COMPONENTS

12CXN88 - 12" HIGH POWER COAXIAL SPEAKER

THE B&C 12CXN88 IS A SMOOTH SOUNDING 12 INCH COAXIAL SPEAKER THAT HANDLES A POWERFUL 500 WATTS AES!

B&C 12CXN88 12 inch CoaxialB&C 12CXN88 12 inch Coaxial

12CXN88

Buy a B & C 12 CX32 12 inch Coaxial Speaker

Item Price: $634.12

SPEAKER MODEL

12CXN88

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

8 ohms

Frequency Response

50Hz - 18kHz

Dispersion 80 Conical

LOW FREQUENCY WOOFER

Sensitivity (1W/1m) 100dB
RMS Power Rating 500 Watts
Program Power 1,000 Watts

Voice Coil Diameter

3.5" / 88mm

Former Material Glass Fibre
Winding Depth .85" / 21.5mm
Flux Density 1.05 T
Magnetic Gap Depth .43" / 11mm
Cone Waterproof Paper
Winding Material Aluminum

HIGH FREQUENCY DRIVER

Sensitivity (1W/1m) 106dB
RMS Power Rating 80 Watts
Program Power 160 Watts
Voice Coil Diameter 3" / 75mm
Winding Material Aluminum
Diaphragm Material Titanium
Magnet Neodymium
Flux Density 1.75 T
Inductance .14mH
Max. Recom. Crossover 1.2kHz

MOUNTING INFORMATION

Overall Diameter 12.4" / 315mm
Bolt Circle Diameter 11.7" / 298mm
Baffle Cutout Diameter 11.18" / 284mm
Depth 7.01" / 178mm
Flange & Gasket Thickness .51" / 13mm
Net Weight 13.23 lbs./ 6.0 kg.
Shipping Weight 16.09 lbs./ 7.3 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

50 Hz
Impedance (Re) 5.0 ohms
Electrical Factor(Qes) .23
Mechanical Q (Qms) 8.3
Total Q (Qts) .22
Compliance Equiv. Vol. (Vas) 59 Liters/2.08cu. ft.
Voice Coil Overhang (Xmax) 8.0mm
Reference Efficiency 3.6%
Surface Area of Cone (Sd)m2 0.08091m2
Diaphragm Mass (Mms) 60 grams
BL Factor 20.9 T-M
Coil Inductance (Le) 1.05mH

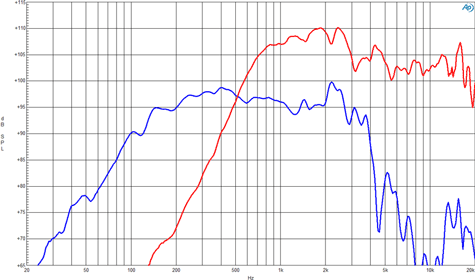

FREQUENCY RESPONSE

B&C 12CXN88 Frequency

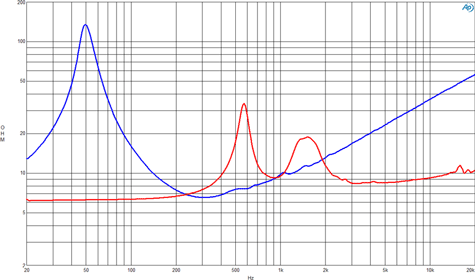

IMPEDANCE

B&C 12CXN88 Impedance

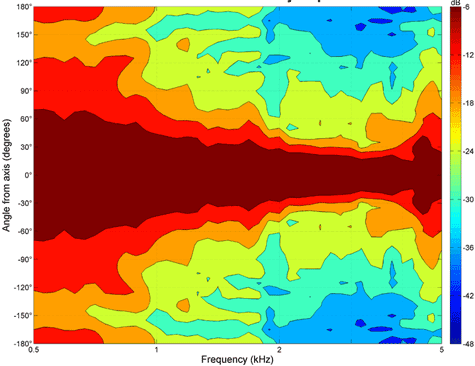

LOW FREQUENCY DIRECTIVITY

B&C 12CXN88 LF Directivity

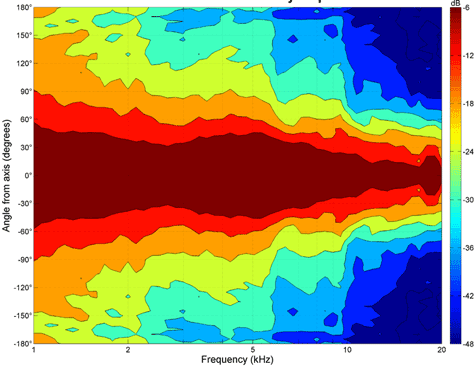

HIGH FREQUENCY DIRECTIVITY

B&C 12CXN88 HF Directivity

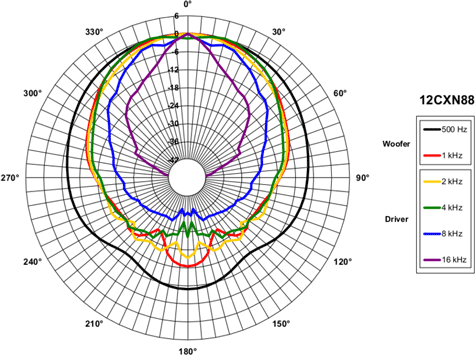

POLAR PATTERN

B&C 12CXN88 Polar
