THE B&C 12NDL76 HAS A NICE COMBINATION OF LIGHTWEIGHT W/ HIGH SPL & POWER HANDLING |
|
|
|
12NDL76 |
|
Item Price: $257.12 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

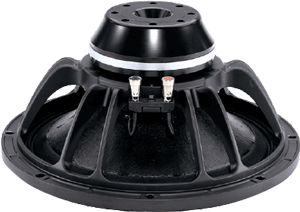

12NDL76 - 12" NEODYMIUM MID-BASS WOOFER |
|
THE B&C 12NDL76 HAS A NICE COMBINATION OF LIGHTWEIGHT W/ HIGH SPL & POWER HANDLING |
|
|
|
12NDL76 |
|
Item Price: $257.12 |
|
|
SPEAKER
MODEL |
12NDL76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
or 16 ohms |
|
RMS
Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Frequency
Response |
50Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Aluminum |
| Former Material | Fiberglass |
| Winding Depth | .63" / 16mm |
| Magnetic Gap Depth | .4" / 10.5mm |
| Flux Density | 1.25T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.7" / 298mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.5" / 141mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 8.6 lbs./ 3.9 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
50 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .21 |
| Mechanical Q (Qms) | 4.2 |
| Total Q (Qts) | .2 |
| Compliance Equiv. Vol. (Vas) | 73 Liters/2.5cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Voice Coil Overhang (Xmax) | 6.5mm |
| Reference Efficiency | 4.3% |
| Diaphragm Mass (Mms) | 53g |
| BL Factor | 20.1 T-M |
| Coil Inductance (Le) | 1.0mH |
