B & C  PROFESSIONAL COMPONENTS

15TBX100 - 15" VERY HIGH POWER WOOFER

THE B&C 15TBX100 HAS A LARGE 10.0MM XMAX &  A MASSIVE 2,000 WATTS POWER HANDLING!

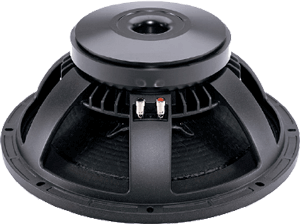

B&C 15TBX100

15TBX100

4 Ohm Version



Item Price: $275.00

8 Ohm Version



Item Price: $275.00

SPEAKER MODEL

15TBX100

SPECIFICATIONS

Nominal Basket Diameter

15" / 320mm

Impedance

4 or 8 ohms

RMS Power Rating

1,000 Watts

Program Power Handling 2,000 Watts

Frequency Response

35Hz - 1.5kHz

Sensitivity (1W/1m)

96dB

Voice Coil Diameter

4" / 100mm

Winding Material Copper
Former Material Fiber Glass
Winding Depth 1.0" / 25mm
Magnetic Gap Depth .47" / 12mm
Flux Density 1.1T

MOUNTING INFORMATION

Overall Diameter 15.5" / 394mm
Bolt Circle Diameter 14.6" / 374mm
Baffle Cutout Diameter 13.9" / 355mm
Depth 7.1" / 180mm
Flange & Gasket Thickness .625" / 16mm
No. Of Mounting Holes 8
Net Weight 27.1 lbs./ 12.3 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

35 Hz
Impedance (Re) 5.1 ohms
Electrical Factor(Qes) .30
Mechanical Q (Qms) 5.2
Total Q (Qts) .28
Compliance Equiv. Vol. (Vas) 113 Liters/3.9cu. ft.
Surface Area of Cone (Sd)m2 0.0855m2
Voice Coil Overhang (Xmax) 10.0mm
Reference Efficiency 1.95%
BL Factor 25.5 T-M
Coil Inductance (Le) 1.6mH

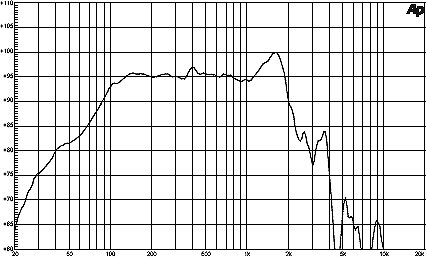

SPL VS. FREQUENCY
