B & C  PROFESSIONAL COMPONENTS

15NW100 - 15" NEODYMIUM PRO WOOFER

LIGHTWEIGHT NEODYMIUM 15" WOOFER W/ 2,000 WATTS PROGRAM!

B&C 15NW100B&C 15NW100

15NW100



Item Price: $320.69

SPEAKER MODEL

15NW100

SPECIFICATIONS

Nominal Basket Diameter

15" / 319mm

Impedance

8 ohms

RMS Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

35Hz - 1.5kHz

Sensitivity (1W/1m)

97dB

Voice Coil Diameter

4" / 100mm

Winding Material Copper
Former Material Fiberglass
Winding Depth 1.0" / 25mm
Magnetic Gap Depth .5" / 12mm
Flux Density 1.2T

MOUNTING INFORMATION

Overall Diameter 15.5" / 393mm
Bolt Circle Diameter 14.6" / 374mm
Baffle Cutout Diameter 13.9" / 353mm
Depth 7.1" / 180mm
Flange & Gasket Thickness .625" / 16mm
No. Of Mounting Holes 8
Net Weight 19.8 lbs./ 9 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

33 Hz
Impedance (Re) 5.1 ohms
Electrical Factor(Qes) .23
Mechanical Q (Qms) 4.3
Total Q (Qts) .22
Compliance Equiv. Vol. (Vas) 139 Liters/4.9cu. ft.
Surface Area of Cone (Sd)m2 0.0855m2
Voice Coil Overhang (Xmax) 9.0mm
Reference Efficiency 2.1%
Diaphragm Mass (Mms) 173g
BL Factor 28 T-M
Coil Inductance (Le) 1.9mH

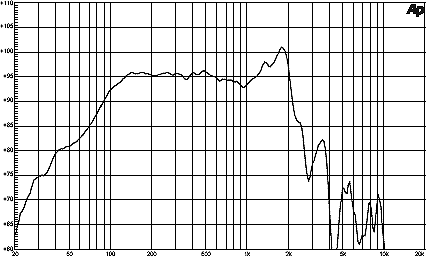

SPL VS. FREQUENCY
