B & C  PROFESSIONAL COMPONENTS

6PEV13 - 6.5" HIGH EFFICIENCY MIDRANGE

THE B&C 6PEV13 IS SPECIALLY DESIGNED FOR CLEAR MIDRANGE FROM 150HZ UP TO 8KHZ!

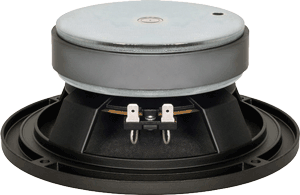

B&C 6PEV13

B&C 6PEV13



Item Price: $92.24

SPEAKER MODEL

6PEV13

SPECIFICATIONS

Nominal Basket Diameter

6.5" / 170mm

Impedance

8 ohms

RMS Power Rating

120 Watts

Program Power  240 Watts

Frequency Response

150Hz - 8.0kHz

Sensitivity (1W/1m)

99dB

Voice Coil Diameter

1.5" / 38mm

Winding Material Aluminum
Former Material Fiber Glass
Winding Depth .28" / 7mm
Magnetic Gap Depth .25" / 6mm
Flux Density 1.4T

MOUNTING INFORMATION

Overall Diameter 7.4" / 187mm
Bolt Circle Diameter 6.7" / 172mm
Baffle Cutout Diameter 5.7" / 145mm
Depth 3.1" / 78mm
Flange & Gasket Thickness .4375" / 11mm
No. Of Mounting Holes 4
Net Weight 5.3 lbs./ 2.4 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

126 Hz
Impedance (Re) 5.2 ohms
Electrical Factor(Qes) .39
Mechanical Q (Qms) 4.6
Total Q (Qts) .36
Compliance Equiv. Vol. (Vas) 5.95 Liters/.21cu. ft.
Voice Coil Overhang (Xmax) 0.6mm
Reference Efficiency 3.0%
BL Factor 8.2 T-M
Coil Inductance(Le) 0.6mH
FREQUENCY RESPONSE
B&C 6PEV13 Frequency Response

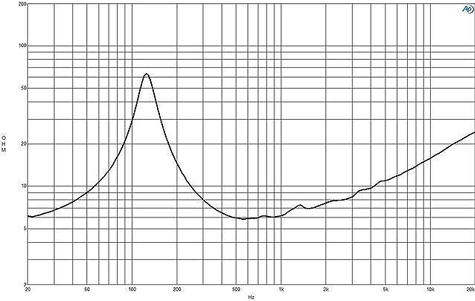

IMPEDANCE CURVE
B&C 6PEV13 Impedance
