B & C  PROFESSIONAL COMPONENTS

6HCX51 - 6.5" NEODYMIUM COAXIAL SPEAKER

THE B&C 6HCX51 LIGHTWEIGHT NEODYMIUM 6.5" COAXIAL SPEAKER HAS A TIGHT CLEAN SOUND & POLYESTER HF DIAPHRAGM!

B&C 6HCX51 6.5 Inch CoaxialB&C 6HCX51 6.5 Inch Coaxial

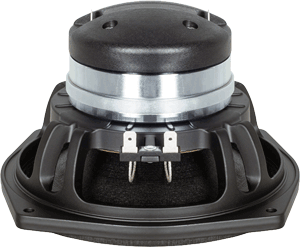

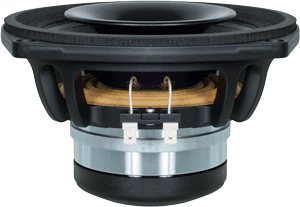

B&C 6HCX51

Item Price: $198.28

SPEAKER MODEL

6HCX51

SPECIFICATIONS

Nominal Basket Diameter

6.5" / 170mm

Impedance 8 ohms
Frequency Range 90Hz - 18kHz
Dispersion Angle 70

LOW FREQUENCY SPECIFICATIONS

RMS Power Rating

150 Watts

Program Power 300 Watts

Sensitivity (1W/1m)

92dB

Voice Coil Diameter

2" / 51mm

Winding Material Copper

HIGH FREQUENCY SPECIFICATIONS

RMS Power Rating 25 Watts
Program Power 50 Watts
Sensitivity (1W/1m) 105dB
Voice Coil Diameter   1.4" / 36mm
Crossover Frequency 2.2kHz
Winding Material Aluminum
Diaphragm Material Polyester
High Frequency Magnet Neodymium

LOW FREQUENCY MATERIALS

Basket Cast Aluminum
Surround Treated Cloth
Surround Shape Two Roll
Cone Shape Exponential
Spider Single
Speaker Magnet Neodymium

MOUNTING INFORMATION

Overall Diameter 7.4" / 187mm
Bolt Circle Diameter 6.7" / 172mm
Baffle Cutout Diameter 5.75" / 146mm
Depth 4.1" / 104mm
Flange & Gasket Thickness .47" / 12mm
No. Of Mounting Holes 4
Net Weight 3.4 lbs./ 1.55 kg.
  4.1 lbs./ 1.85 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

89Hz
Impedance (Re) 5.2 ohms
Electrical Factor(Qes) .4
Mechanical Q (Qms) 7.5
Total Q (Qts) .38
Compliance Equiv. Vol. (Vas) 5.0 Liters/.18cu. ft.
Voice Coil Overhang (Xmax) 5.0mm
Reference Efficiency 0.8%
BL Factor 11.3 T-M
Diaphragm Mass (Mms) 16 Grams
Coil Inductance(Le) .8mH
Surface Area of Cone (Sd)m2 0.0132m2

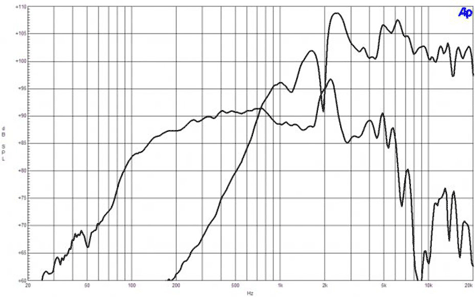

FREQUENCY RESPONSE

B&C 6HCX51 Frequency

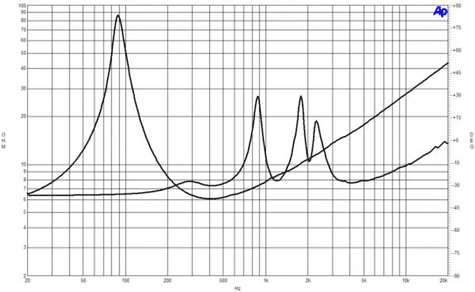

IMPEDANCE CURVE
B&C 6HCX51 Impedance

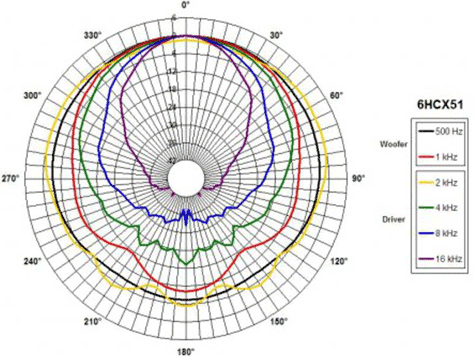

POLAR PATTERN
B&C 6HCX51 Polar

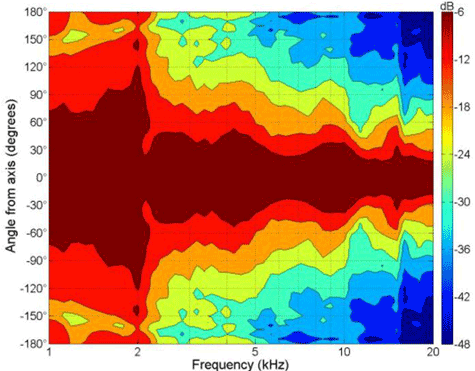

HIGH FREQUENCY DIRECTIVITY
B&C 6HCX51 HF Directivity

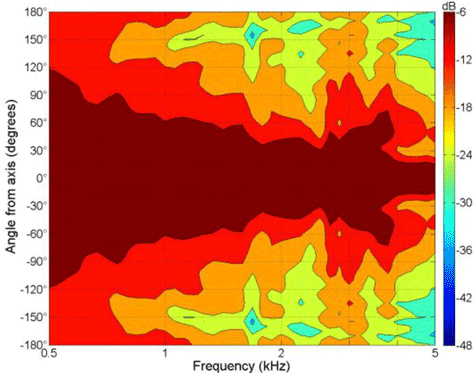

LOW FREQUENCY DIRECTIVITY

B&C 6HCX51 LF Directivity

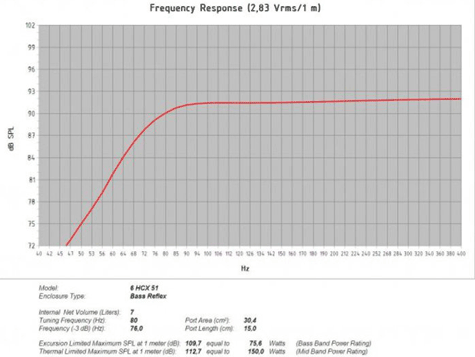

PREDICTED RESPONSE
B&C 6HCX51 Response
