B & C  PROFESSIONAL COMPONENTS

DE12 - 1" HIGH FREQUENCY DRIVER

THE B&C DE12 HAS A GOOD MIDS AND A MORE MELLOW HIGH RESPONSE & HANDLES 50 WATTS PROGRAM!

B&C DE12

DE12



Item Price: $62.93

SPEAKER MODEL

DE12

SPECIFICATIONS

Throat Diameter

1" / 25mm

Impedance

8 ohms

RMS Power Rating

25 Watts

Program Power 50 Watts

Frequency Response

1.5kHz - 18kHz

Recommended Crossover 2.2kHz

Sensitivity (1W/1m)

106dB

Voice Coil Diameter

1.4" / 36mm

Winding Material Aluminum
Inductance 0.14mH
Diaphragm Material Mylar
Flux Density 1.45T

MOUNTING INFORMATION

Overall Diameter 3.54" / 90mm
Mounting Holes (2) M5 holes on 180- 3" Dia.
Depth 2" / 49mm
Net Weight 2.2 lbs./ 1 kg.

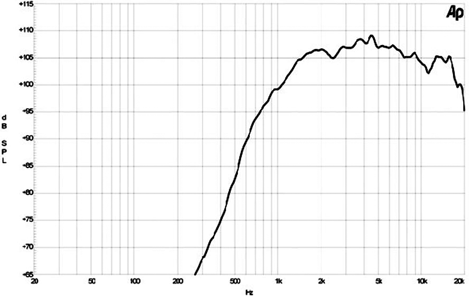

FREQUENCY RESPONSE

B&C De12 Frequency
