B & C  PROFESSIONAL COMPONENTS

DE35 - 1.25" SUPERTWEETER

NICE SUPERTWEETER UPGRADE IN BASS GUITAR CABINETS THAT SOUNDS SMOOTH!

B&C DE35 SupertweeterB&C DE35 Supertweeter Back View



Item Price: $73.33

SPEAKER MODEL

DE35

SPECIFICATIONS

Throat Diameter

1" / 25mm

Impedance

8 ohms

RMS Power Rating

25 Watts

Program Power 50 Watts

Frequency Response

3.5kHz - 18kHz

Recommended Crossover 5.0kHz

Sensitivity (1W/1m)

108 dB

Voice Coil Diameter

1.25" / 32mm

Winding Material Aluminum
Inductance 0.1mH
Diaphragm Material Mylar
Flux Density 1.3T

MOUNTING INFORMATION

Overall Diameter 4" / 100mm
Baffle Cutout Diameter 3.125" / 79.4mm
Mounting Holes (3)M4 holes 120°on 3.6" / 91mm diameter
Depth 1.8" / 46mm
Magnet Diameter 2.5" / 63.5mm
Net Weight 1.5 lbs./ .7 kg.

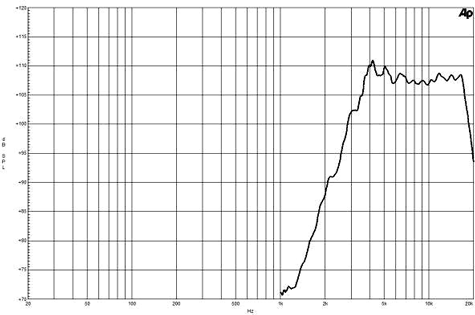

FREQUENCY RESPONSE GRAPH

B&C DE35 Frequency Response Graph
