BLACK MOUNTAIN - 12" GUITAR SPEAKER
|
|
|
BLACK MOUNTAIN - 12" GUITAR SPEAKER |
|
ALNICO MAGNET W/ FAST BREAKUP W/ SUBDUED TIGHT BASS, SMOOTH MIDS & LOUD HIGHS! |
|
|
|
Black Mountain-8 - 8 ohms
Item Price: $269.99 |
| SPEAKER MODEL | BLACK MOUNTAIN |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8
ohms
|
| RMS Power Rating | 30 Watts |
| Peak Power Rating | 60 Watts |
| Usable Frequency Response | 70Hz - 5.5kHz |
|
Voice
Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
101.3dB |
|
Magnet
Weight |
35
oz. |
| Net Weight | 8.9lbs. / 4.04kg. |
| Shipping Weight | 11.1lbs. / 5kg. |
|
MOUNTING INFORMATION |
|
|
|
12.26" / 311.4mm |
| Bolt Circle Diameter |
11.71 |
| Baffle Cutout Diameter | 11.06" / 280.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.95" / 151.1mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper Former |
| Dust Cap | Treated Paper |
| Cone | Seamed Paper |
| Cone Edge | Paper |
| Magnet | Alnico |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 68.58Hz |
| Impedance (Re) | 6.44 ohms |
| Coil Inductance (Le) | 0.62mH |
| Electromagnetic Q (Qes) | .53 |
| Mechanical Q (Qms) | 8.13 |
| Total Q (Qts) | .50 |
| Compliance Equiv. Vol. (Vas) | 69.64Liters / 2.46 cu. ft. |
| BL Product (BL) | 12.07 T-M |
| Voice Coil Overhang (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | .05067m2 |
|

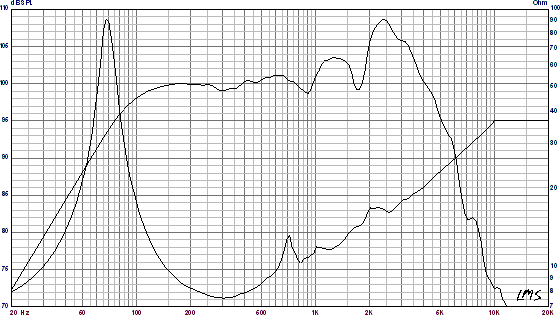

FREQUENCY RESPONSE GRAPH |
|
|
|
|
