Genuine Eminence

CTS KSN-1188  -  PIEZO SUPERTWEETER

THE POWERLINE CTS KSN-1188 PIEZO SUPERTWEETER HAS A BUILT-IN OVERLAOD PROTCETION CIRCUITRY!

CTS KSN-1188

Buy a Motorola KSN-1142 Piezo Tweeter

Item Price: $54.95

MODEL

KSN-1188

SPECIFICATIONS

RMS Power Rating

400 Watts @ 800Hz

Impedance

Appears As .3uF Capacitor

Sensitivity 93dB SPL

Usable Frequency Range

800Hz - 20kHz

Minimum Recommended Crossover

800Hz

Maximum Operating Temperature

80 C

DIMENSIONS

Overall Diameter 3.75" / 95.25mm
Depth 3" / 76.2mm
Thread Size 1.375" / 34.9mm
Net Weight 0.625 lbs.

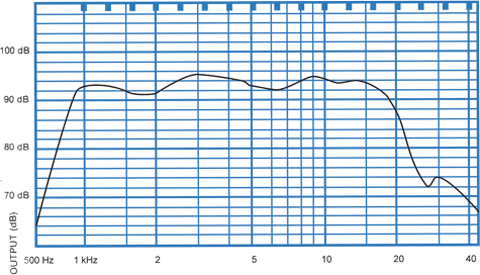

FREQUENCY RESPONSE GRAPH USING A 2" X 6" MOTOROLA EXPONENTIAL HORN
