Genuine Eminence

BASS LITE S2012 - 12" WOOFER

THE EMINENCE BASSLITE S2012 HAS A TIGHT CLEAN BASS & CRISP MIDS FOR BASS GUITAR & WEIGHS 4.1LBS!

Eminence BassLite S2012Eminence BassLite S2012



Item Price: $144.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

BassLite S2012

SPECIFICATIONS

Nominal Basket Diameter

12" / 304.8mm

Impedance

8 ohms

RMS Power Rating

150 Watts

Frequency Response

49Hz - 4.5kHz

Sensitivity 97dB SPL

Voice Coil Diameter

2" / 50.8mm

Net Weight 4.1lbs./ 1.9kg.
Shipping Weight 5.8lbs./ 2.6kg.
Rec. Enclosure Volume (Sealed) 1.1-1.3 cu.ft. / 31-35 Liters
Rec. Enclosure Volume (Vented) 1.5-3.0 cu.ft. / 42.5-85 Liters

MOUNTING INFORMATION

Overall Diameter 12.03" / 305.5mm
Bolt Circle Diameter 11.59" / 294.3mm
Baffle Cutout Diameter 11.07" / 281.2mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.275" / 6.4mm
Overall Depth 5.1" / 130mm
Magnet Weight 7 oz.
Net Weight 4.1 lbs./ 1.86 kg.
Shipping Weight 5.8 lbs./ 2.63 kg.

MATERIALS

Cone Paper
Voice Coil Copper
Magnet Neodymium
Basket Steel
Surround Cloth
Dust Cap Solid Composition Felt

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 48 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 0.43mH
Electromagnetic Q (Qes) .53
Mechanical Q (Qms) 5.5
Total Q (Qts) .48
Compliance Equivalent Vol. (Vas) 90.6 Liters/3.2cu. ft.
Voice Coil Overhang (Xmax) 5.2mm
Surface Area of Cone (Sd) .05195m2
BL Product (BL) 11.7 T-M
Peak Dia. Displacement Volume(Vd) 270.1cc

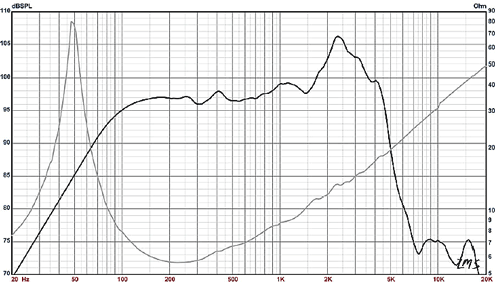

BASSLITE S2012 RESPONSE CURVE
