LEGEND CA15-4 - 15" BASS GUITAR SPEAKER

THE EMINENCE LEGEND CA15-4 IS A 4 OHM 15" BASS GUITAR SPEAKER THAT HAS A 5.0MM XMAX & CLEAN SOUNDING BASS & MIDS!

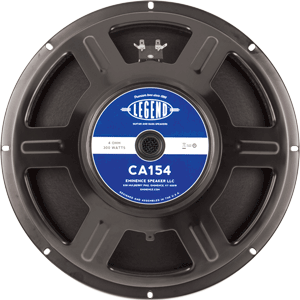

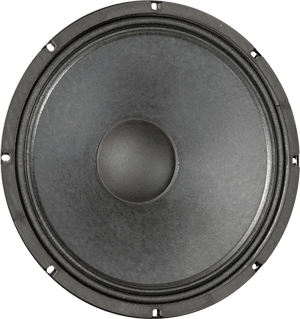

Eminence Legend CA15-4Eminence Legend CA15-4

4 Ohms

Buy an Eminence Legend CB15 Bass Guitar Speaker

Item Price: $174.99

Free UPS Ground Shipping in the U.S.

SPEAKER MODEL LEGEND CA15-4

SPECIFICATIONS

Nominal Basket Diameter 15" / 381mm
Impedance 4 ohms
RMS Power Rating 300 Watts
Program Power 600 Watts
Usable Frequency Response 45Hz - 3.0kHz
Voice Coil Diameter 2.5" / 63.5mm
Sensitivity (1W/1m) 96.9dB
Magnet Weight 56 oz

MOUNTING INFORMATION

Overall Diameter 15.15" / 384.8mm
Bolt Circle Diameter 14.56" / 369.9mm
Baffle Cutout Diameter 13.87" / 352.3mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.25" / 6.4mm
Overall Depth 6.25" / 159mm
Net Weight 11.9 lbs. / 5.4kg.
Shipping Weight 14.1 lbs. / 6.4kg.

MATERIALS

Basket Pressed Steel
Voice Coil Former Polyimide
Voice Coil Copper
Cone Treated Paper
Dust cap Treated Paper
Surround Sealed Cloth
Magnet Ferrite

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 51 Hz
 Impedance (Re) 2.9 ohms
Coil Inductance (Le) .80mH
Electromagnetic Q (Qes) .54
Mechanical Q (Qms) 4.94

Total Q (Qts)

.49

Compliance Equivalent Vol. (Vas) 108.2 Liters / 3.82cu.ft.
Voice Coil Overhang (Xmax) 5.0mm
Surface area of Cone (Sd) .08237 m2
BL Product (BL) 12.2 T-M
Diaphragm Mass Inc. Airload (Mms) 87 grams
Mechanical Compliance (Cms) .11mm/N

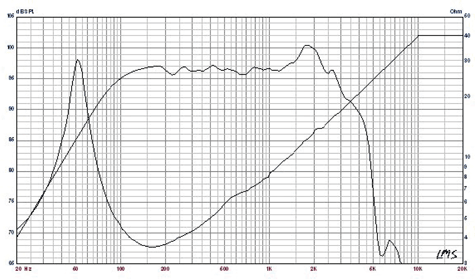

FREQUENCY RESPONSE

Legend CA15-4 Frequency Response
