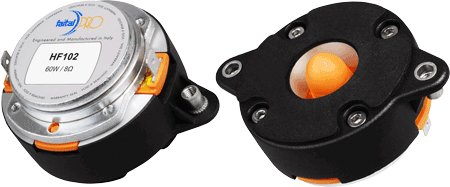

FAITAL PRO HF102 - 1" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF102 - 1" PRO NEO H.F. DRIVER |
|
POLYMER DIAPHRAGM ALLOWS FOR A SMOOTH RESPONSE & IT WEIGHS ONLY 1.26LBS! |
|
|
|
FAITAL PRO HF102 |
|
Item Price: $93.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Sensitivity
(1W/1m) |
107dB SPL |
| AES Power Handling | 30 Watts |
| Program Power Handling | 60 Watts |
|
Frequency
Response |
1.8kHz
- 20kHz |
| Recommended Crossover | 2.6 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.02"
/ 26mm |
| Winding Depth | 0.07" / 1.7mm |
| Magnetic Gap Depth | 0.08" / 2mm |
| Flux Density | 1.3T |
|
Mounting Information |
|
| Overall Diameter |
3.58" /
91mm |
|
Overall
Depth |
1.69" / 43mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
|
Net
Weight |
.82 lb. / .37 kg. |
| Shipping Weight | .99 lb. / .45 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

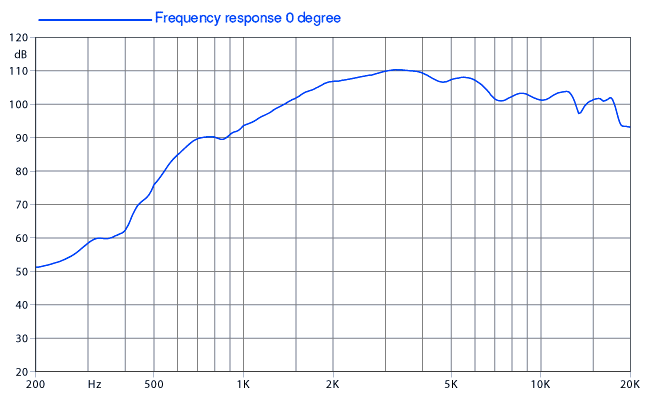

| Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn) | |
 |
|

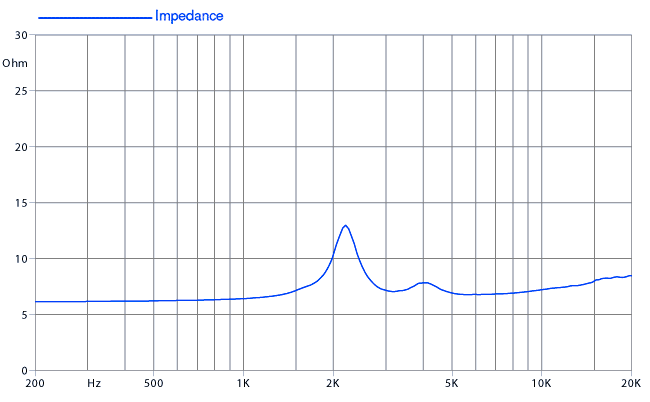

| Impedance Curve | |
 |
|

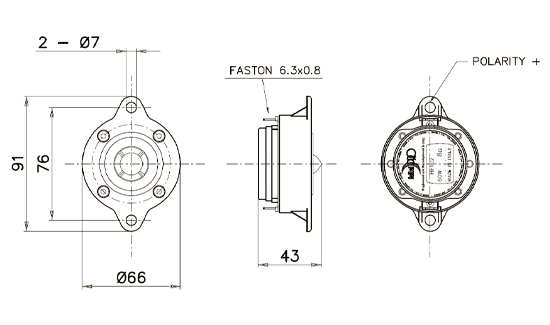

| Dimensional Drawing | |
 |
|
