FAITAL PRO HF10RK - 1" PRO NEO H.F. DRIVER

TITANIUM DIAPHRAGM DELIVERS NICE CRISP HIGHS WITH STRONG MIDS, LOW DISTORTION & WEIGHS ONLY 3.09 LBS!

Faital Pro HF10RK

FAITAL PRO HF10RK

8 Ohms

Item Price: $219.95

16 Ohms

Item Price: $219.95

RK-HF10RK-8DIA          $69.95     8 ohm diaphragm

RK-HF10RK-16DIA          $69.95     16 ohm diaphragm

H.F. DRIVER MODEL  - HF10RK

Specifications

Throat Diameter

1" / 25.4mm

Sensitivity (1W/1m) 109dB SPL
AES Power Handling 60 Watts
Program Power Handling 120 Watts

Frequency Response

1kHz - 20kHz

Recommended Crossover 1.3 kHz @12 dB/oct.
Voice Coil Diameter 1.73" / 44mm
Winding Depth 0.1" / 2.45mm
Magnetic Gap Depth 0.11" / 2.75mm
Flux Density 1.9T
Phase Plug Radial

Mounting Information

Overall Diameter 4.02" / 102mm
Overall Depth 2.13" / 54mm
Mounting (2) M6 threaded holes 180 apart on 3" diameter
(3) M6 threaded holes 120 apart on 2.24" diameter
Net Weight 3.09 lb. / 1.4 kg.
Shipping Weight 3.26 lb. / 1.48 kg.

Materials

Diaphragm Ketone Polymer
Voice Coil Copper Clad Aluminum
Voice Coil Former Kapton
Magnet Neodymium

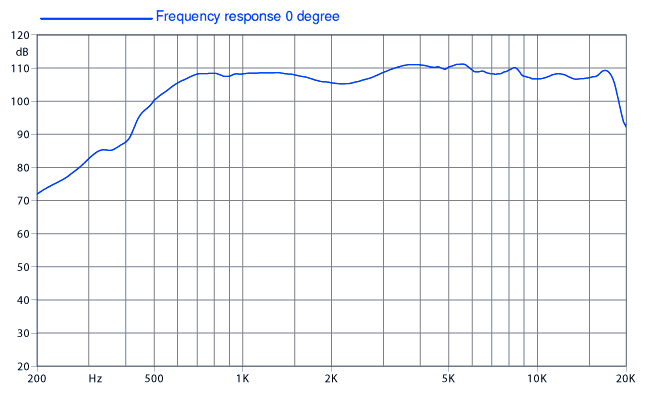

Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn)

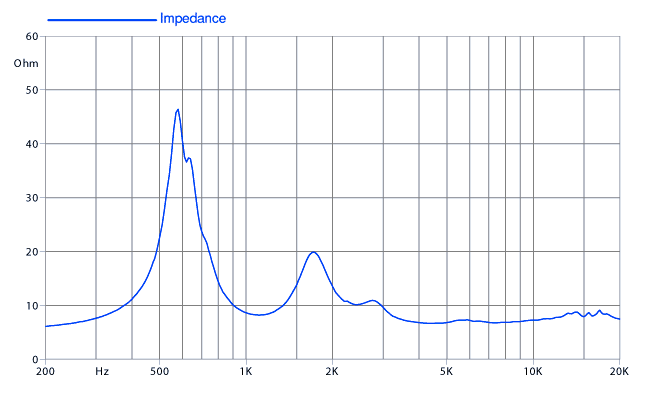

Impedance Curve
Dimensional Drawing
