FAITAL PRO STH100 - 1" SHORT ELLIPTICAL TRACTRIX HORN

HELPS DELIVER VERY FEW REFLECTIONS & LESS COLORATION THAN STANDARD HORNS!

Faital Pro STH100Faital Pro STH100

FAITAL PRO STH100

Item Price: $30.99

HORN MODEL  - STH100

Specifications

Type Short Elliptical Tractrix

Throat Size

1" / 25.4mm

Frequency Response

1kHz - 20kHz

Recommended Crossover Freq. 1kHz
Dispersion 80H x 70 V
Construction Cast Aluminum
Net Weight 1.01 lbs. / .46kg
Shipping Weight 1.25 lbs. / .57kg

Mounting Information

Overall Width 7.09" / 180mm
Overall Height 4.72" / 120mm
Overall Depth 3.38" / 85.9mm
Cutout Width (See Baffle Cutout Graph Below)
Cutout Height (See Baffle Cutout Graph Below)
Mounting Hole Diameter .26"  /  6.5 mm
Mounting Holes 4
High Frequency Mounting Type Bolt On
High Frequency Mounting Hole Diameter
3 Holes Equally Spaced On Diameter 2.25"  /  57.2 mm
2 Holes Equally Spaced On Diameter 3"  /  76.2 mm

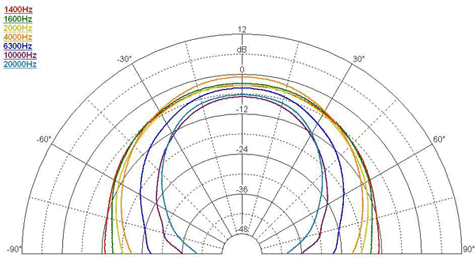

Horizontal Polar Pattern
Faital Pro STH100 Horizontal Polar Pattern

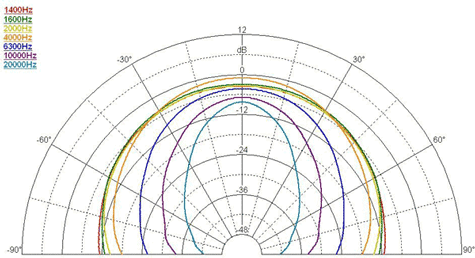

Vertical Polar Pattern
Faital Pro STH100 Vertical Polar Pattern

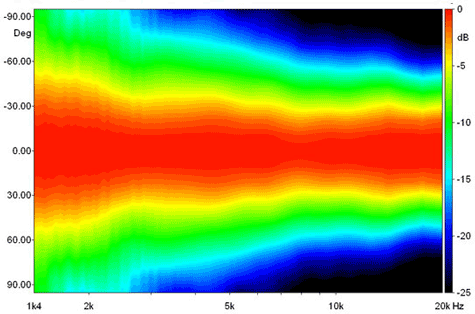

Horizontal Beamwidth
Faital Pro STH100 Horizontal Beamwidth

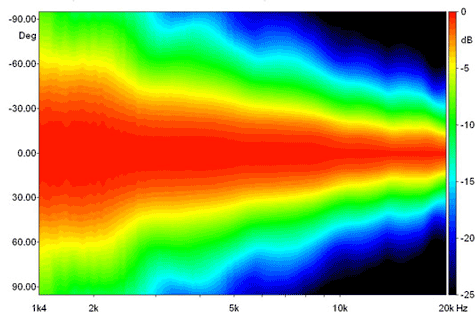

Vertical Beamwidth
Faital Pro STH100 Vertical Beamwidth

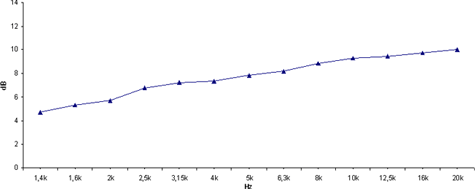

Directivity Index

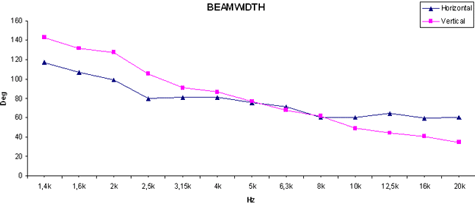

Beamwidth

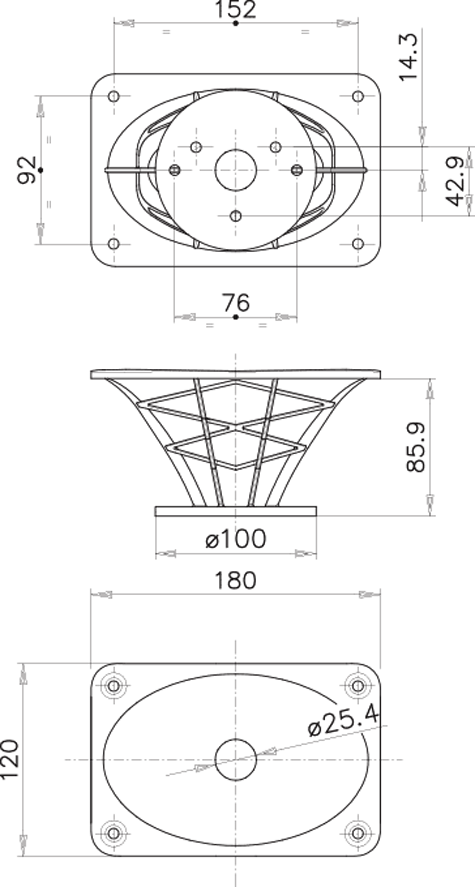

Dimensions
Faital Pro STH100 Drawing

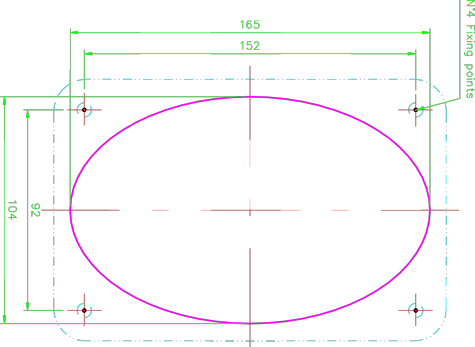

Baffle Cutout Dimensions
Faital Pro STH100 Baffle Cutout
