Genuine Eminence

LEGEND 105 - LEAD GUITAR SPEAKER

THE EMINENCE LEGEND 105 IS A 10"  GUITAR SPEAKER  THAT HAS A SWEET "FENDER" TONE THAT WORKS GREAT WITH A STRAT!

Eminence Legend 105Eminence Legend 105

Free UPS Ground Shipping in the U.S.

Legend 105-8

8 ohm version

Item Price: $64.99

Legend 105-16

16 ohm version

Item Price: $64.99

     SPEAKER MODEL

LEGEND 105

SPECIFICATIONS

Nominal Basket Diameter

10" / 254mm

Impedance

8 or 16 ohms

RMS Power Rating

75 Watts

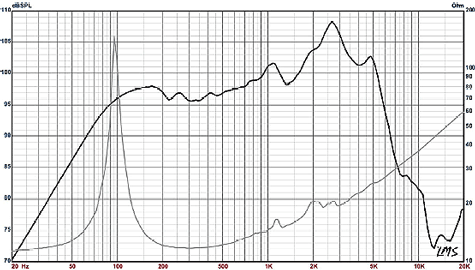

Usable Frequency Response

100Hz - 5.8kHz

Voice Coil Diameter

1.5" / 38.1mm

Sensitivity (1W/1m)

100dB

Magnet Weight

16 oz.

Shipping Weight 5.4lbs. / 2.6kg.

MOUNTING INFORMATION

Overall Diameter 10.11" / 256.8mm
Bolt Circle Diameter 9.6" / 243.8mm
Baffle Cutout Diameter 9.13" / 231.8mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.23" / 5.7mm
Overall Depth 4.1" / 104mm

MATERIALS

Basket

Pressed Steel

Voice Coil Polyamide-Imide Coated Copper
Dust Cap Solid Composition Felt
Cone Paper
Surround Paper Cone Edge
Magnet Ferrite

THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

96 Hz

Impedance (Re) 7.49 ohms
Coil Inductance (Le) 0.64mH
Electromagnetic Q (Qes) 1.32
Mechanical Q (Qms) 13.8
Total Q (Qts) 1.21
Compliance Equivalent Vol. (Vas) 21.8 Liters / .77cu.ft.
Voice Coil Overhang (Xmax)

0mm

Surface Area Of Cone (Sd) .03449m2
BL Product (BL) 9.9 T-M
Displacement Volume (Vd) 0 cc
Diaphragm Mass Inc. Airload (Mms) 21 grams
Mechanical Compliance (Cms) .13mm/N
Efficiency Bandwidth Product (EBP) 73
