LYNCH SUPER V12 - 12" GUITAR SPEAKER
|
|
|
LYNCH SUPER V12 - 12" GUITAR SPEAKER |
|
THE LYNCH SUPER V12 HAS A WARM CLEAN SOUND W/ PRESENCE & HANDLES 150 WATTS RMS! |
|
|
|
Lynch Super V12
Item Price: $119.99 New Low Price |
|
SPEAKER MODEL |
Lynch Super V12 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" / 305mm |
|
Impedance |
8 ohms |
| RMS Power Rating | 150 Watts |
| Peak Power Rating | 300 Watts |
| Usable Frequency Response | 70Hz - 4.5kHz |
| Voice Coil Diameter | 2" / 50.8mm |
|
Sensitivity (1W/1m) |
99.2dB |
|
Magnet Weight |
38 oz. |
|
MOUNTING INFORMATION |
|
|
|
12.38" / 314.5mm |
| Bolt Circle Diameter |
11.57 |
| Baffle Cutout Diameter | 11.07" / 281mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.46" / 138.7mm |
| Net Weight | 9.7lbs. / 4.4 kg. |
| Shipping Weight | 11.5lbs. / 5.22 kg. |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Voice Coil | Copper |
| Coil Former Material | Polyimide |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 89 Hz |
| Impedance (Re) | 7.25 ohms |
| Coil Inductance (Le) | 0.83mH |
| Electromagnetic Q (Qes) | 0.72 |
| Mechanical Q (Qms) | 13.87 |
| Total Q (Qts) | .69 |
| Compliance Equiv. Vol. (Vas) | 44.6Liters / 1.58 cu. ft. |
| BL Product (BL) | 17.3 T-M |
| Voice Coil Overhang (Xmax) | 0.79mm |
| Surface Area of Cone (Sd) | .05195m2 |
|

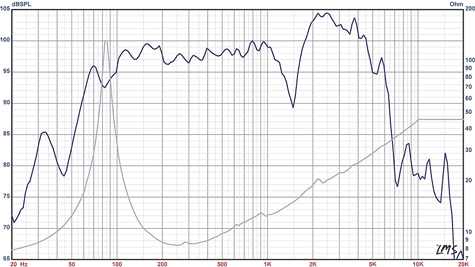

FREQUENCY RESPONSE GRAPH |
|
|
|
|
