Genuine Eminence

EMINENCE N320T-8- 2" PRO HIGH FREQUENCY DRIVER

THE EMINENCE N320T-8 DELIVERS A VERY SMOOTH SOUND WITH HIGH POWER HANDLING & HIGH EFFICIENCY!

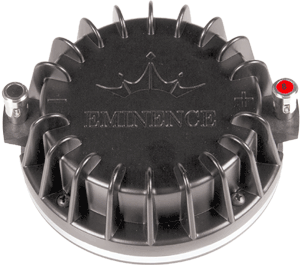

Eminence N320T-8 2" HF driver

N320T-8

NEW N320T-8  -  8 ohms

Item Price: $199.99

H.F. DRIVER MODEL  - N320T-8

Specifications

Throat Diameter 2" / 50.8mm
Impedance 8 ohms
D.C. Resistance 4.8 ohms
AES Power Rating 100 Watts above 800Hz
Sensitivity (1W/1m) 110.4dB SPL
Frequency Response 800Hz - 20kHz
Recommended Crossover 800Hz @ 12dB
Resonance 550Hz
Voice Coil Diameter 3.0" / 76.2mm
Magnetic Assembly Weight 11 oz.

Mounting Information

Overall Diameter 5.72" / 145.3mm
Overall Depth 2.53" / 64.3
Mounting (4) 1/4-20 studs on 4" dia. centers
Net Weight 5.5 lb. / 2.5 kg.
Shipping Weight 5.8 lb. / 2.6 kg.

Materials

Diaphragm Titanium
Voice Coil Polyimide
Input Connectors Metal Push-Button Terminals
Magnet Neodymium

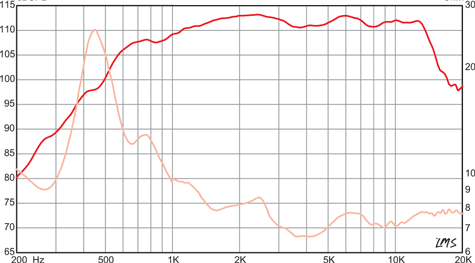

SPL vs. Frequency

Eminence N320T-8 Frequency Response Graph
