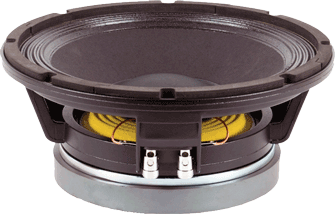

BEYMA 10G40 - 10" LOW FREQUENCY SPEAKER

AWESOME DEEP CLEAN BASS SOUND IN BASS GUITAR CABINETS WITH A HIGH XMAX OF 7.0MM!

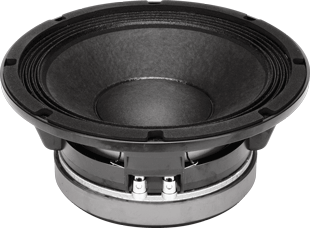

Beyma 10G40Beyma 10G40

BEYMA 10G40

4 Ohm Version

Item Price: $199.95

8 Ohm Version

Item Price: $199.95

WOOFER MODEL - 10G40

SPEAKER CABINET DESIGNS BELOW

Specifications

Nominal Basket Diameter

10" / 250mm

Impedance

4 or 8 ohms

AES Power Rating

400 Watts

Program Power  800 Watts

Frequency Response

45Hz - 4.0kHz

Sensitivity (1W/1m)

95dB

Voice Coil Diameter

3" / 77mm

Recom. Enclosure Volume .7-2.6 ft3  /  20-70 Liters
Voice Coil Length 17.5 mm
Air Gap Height 7 mm
X Damage (peak to peak) 28 mm
BL Factor 17 N/A
Magnetic Assembly Weight 11 lb. / 5 kg.

Mounting Information

Overall Diameter 10.26" / 260.5mm
Bolt Circle Diameter 9.59" / 243.5mm
Baffle Cutout Diameter-
- Front Mount 8.98" / 228mm
- Rear Mount 9" / 230mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.10 ft3  /  3 Liters
Overall Depth 4.72" / 120mm
Net Weight 12.5 lb. / 5.7 kg.
Shipping Weight 13.2 lb. / 6 kg.

Materials

Basket Cast Aluminum
Cone Paper
Surround Treated Cloth
Voice Coil Edgewound Copper Wire
Magnet High Currie Temperature Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 45 Hz
Impedance (Re) 6.2 ohms
Coil Inductance (Le) .6 mH
Mechanical Q (Qms) 7.1
Electrical Factor (Qes) .32
Total Q (Qts) .3
Comp. Equivelant Vol. (Vas) 1.73 ft3 / 49 Liters
Voice Coil Overhang (Xmax) 7.0 mm
Surface Area of Cone (Sd)m2 0.0380m2
Diaphragm Mass (Mms) 52 Grams
Mechanical Compliance of Suspension (Cms) .24mm/M
Reference Efficiency 1.4%
Displacement Volume (Vd) 266 cm3

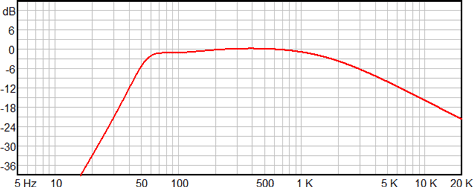

Low Freq. Response: Bass Reflex Cabinet

Beyma 10G40 Frequency

  • (1) Beyma 10G40

  • Cabinet Size: 1.5 cu. ft.

  • Tuning Freq: 55Hz

  • Port Diameter: (1) 4"

  • Port Depth: 4.5"

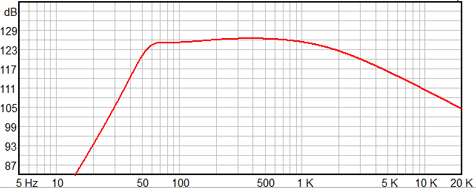

Beyma 10G40 Frequency
  • (2) Beyma 10G40

  • Cabinet Size: 3.0 cu. ft.

  • Tuning Freq: 55Hz

  • Port Diameter: (2) 4"

  • Port Depth: 3.25"

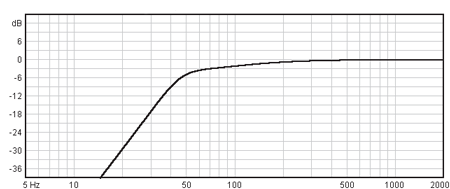

Frequency Response & Distortion Curves

Beyma 10G40 Frequency

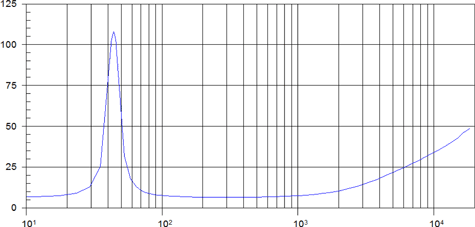

Impedance Curve

Beyma 10G40 Impedance

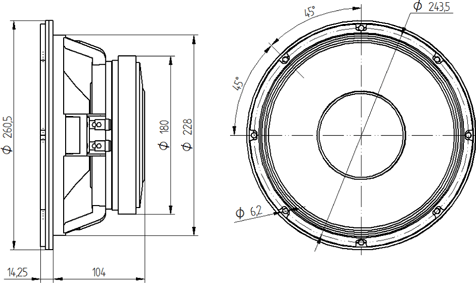

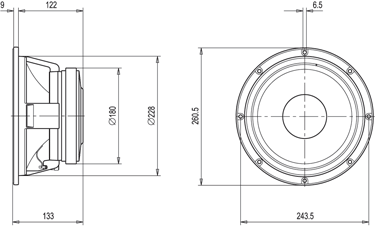

Mounting Dimensions

Beyma 10G40 Dimensional Drawing
