BEYMA 115ND/W -15" LIGHTWEIGHT WOOFER
|
|
|
BEYMA 115ND/W -15" LIGHTWEIGHT WOOFER |
|
WORKS GREAT IN BASS GUITAR CABINETS OR PA SYSTEMS FOR A HIGH QUALITY SOUND! |
|
|
|
BEYMA 115ND/W |
|
No Longer Available |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
30Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 2.1-5.3 ft3 / 60-150 Liters |
| BL Factor | 23.6 |
| Voice Coil Length | 23 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 35 mm |
| BL Factor | 23.6 N/A |
| Magnetic Assembly Weight | 8.8 lb. / 4 kg. |
| Mounting Information | |
|
Overall Diameter |
15.28" / 388mm |
| Bolt Circle Diameter | 14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.86" / 352mm |
| - Rear Mount | 13.98" / 355mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.18 ft3 / 5 Liters |
|
Overall
Depth |
5.9" / 150mm |
|
Net
Weight |
15.4 lb. / 7 kg. |
| Shipping Weight | 18.04 lb. / 8.2 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | High Stiffness Paper |
| Surround | Treated Cloth |
| Voice Coil | High Temperature Copper Wire |
| Former | Polyimide Fiber Glass |
| Spider | Nomex |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 37 Hz |
|
Impedance
(Re) |
6.1 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 5.6 |
| Electrical Factor(Qes) | .36 |
| Total Q (Qts) | .34 |
| Comp. Equivalent Vol. (Vas) | 5.3 ft3 / 150 Liters |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Surface Area of Cone (Sd)m2 | 0.0910m2 |
| Reference Efficiency | 2.0% |
| Displacement Volume (Vd) | 730 cm3 |

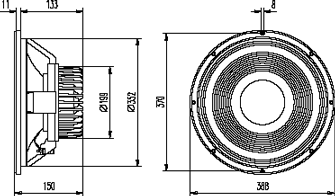

| Dimensions | |
 |
|
| Frequency Response & Distortion Curves | |
 |
|

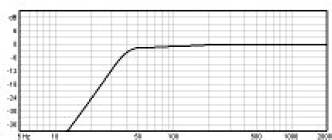

| Predicted Low Frequency Response(Bass Reflex): Vb:120L & Fb:40Hz | |
 |
|
| Free Air Impedance Curve | |
 |
|
