BEYMA 12P1000ND - 12" POWERFUL NEODYMIUM SPEAKER

THE BEYMA 12P1000ND IS A POWERFUL 12" W/ STRONG DEEP BASS  SOUND THAT HOLDS UP UNDER EXTREME POWER CONDITIONS!

Beyma 12P1000Nd

BEYMA 12P1000ND

12P1000Nd-4  -  4 Ohms

Item Price: $349.95

12P1000Nd-8  -  8 Ohms

Item Price: $349.95

SPEAKER MODEL  - 12P1000ND

Specifications

Nominal Basket Diameter

12" / 300mm

Impedance

4 or 8 ohms

AES Power Rating

900 Watts

Program Power  1,800 Watts

Frequency Response

30Hz - 2.5kHz

Sensitivity (1W/1m)

96dB

Voice Coil Diameter

4" / 100mm

Recom. Enclosure Volume .7-2.24 ft3  /  20-60 Liters
Voice Coil Length 21 mm
Air Gap Height 12 mm
X Damage (peak to peak) 52 mm
Magnetic Assembly Weight 10.16 lb. / 4.62 kg.

Mounting Information

Overall Diameter 12.28" / 312mm
Bolt Circle Diameter 11.61" / 295mm
Baffle Cutout Diameter-
- Front Mount 11.14" / 283mm
- Rear Mount 11.02" / 280mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.14 ft3  /  4 Liters
Overall Depth 5.16" / 131mm
Net Weight 11.88 lb. / 5.4 kg.
Shipping Weight 13.42 lb. / 6.1 kg.

Materials

Basket Cast Aluminum
Cone High Stiffness Weather Resistant Paper
Surround Treated Cloth
Spider Cotton
Voice Coil Copper
Metal Parts Anti-Corrosion Coated
Magnet High Energy Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 47 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 1.7 mH
Mechanical Q (Qms) 7.89
Electrical Factor(Qes) .27
Total Q (Qts) .26
Comp. Equivelant Vol. (Vas) 1.73 ft3 / 49 Liters
Voice Coil Overhang (Xmax) 8.0mm
Effective Surface Area (Sd) .0550 m2
Reference Efficiency 1.8%
BL Factor 23.5N/A
Displacement Volume (Vd) 440 cm3

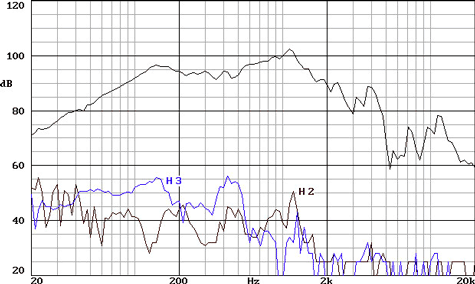

Low Frequency Response & Distortion Graph:

 On Axis Frequency Response Measured With Speaker On Infinite Baffle In Anechoic Chamber

Beyma 12P1000ND Frequency Graph
