BEYMA 15G40 - 15" LOW FREQUENCY SPEAKER
|
|
|
BEYMA 15G40 - 15" LOW FREQUENCY SPEAKER |
|
DELIVERS AN INCREDIBLY WARM DEEP BASS SOUND FOR THE HIGHEST QUALITY BASS SYSTEMS! |
|
|
|

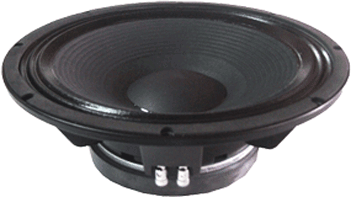

BEYMA 15G40 |
|
NEW 4 Ohm Version
Item Price: $329.95 |
|
|
8 Ohm Version
Item Price: $329.95 |
|
|
LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
25Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 1.4-6.0 ft3 / 40-150 Liters |
| Voice Coil Length | 23 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 33 mm |
| BL Factor | 23 N/A |
| Magnetic Assembly Weight | 19.8 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- |
|
| - Front Mount | 13.85" / 352mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
| Overall Depth | 6.42" / 163mm |
| Net Weight | 22.9 lb. / 10.4 kg. |
| Shipping Weight | 25.4 lb. / 11.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Spider | Dual Nomex + Polycotton |
| Voice Coil | Edgewound Copper Wire |
| Magnet | High Curie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 37 Hz |
|
Impedance
(Re) |
5.9 ohms |
| Coil Inductance (Le) | 2.9 mH |
| Mechanical Q (Qms) | 9.95 |
| Electrical Factor(Qes) | .31 |
| Total Q (Qts) | .30 |
| Comp. Equivelant Vol. (Vas) | 5.26 ft3 / 149 Liters |
| Voice Coil Overhang (Xmax) | 7.0 mm |
| Surface Area of Cone (Sd)m2 | 0.083m2 |
| Reference Efficiency | 2.3% |
| Displacement Volume | 576 cm3 |
|

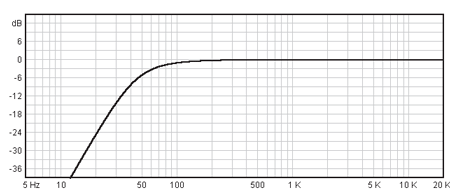

LOW FREQ. RESPONSE: BASS REFLEX CABINET Vb=80L, Fb=45HZ |
|
 |
|
|

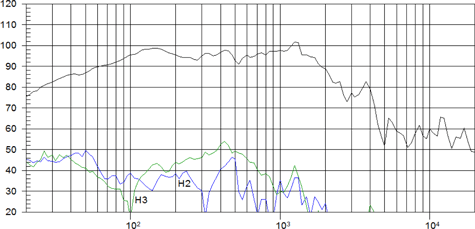

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|

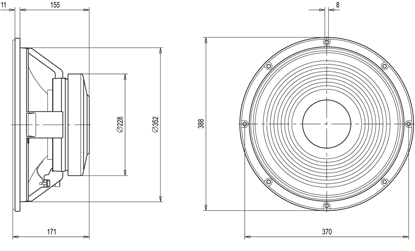

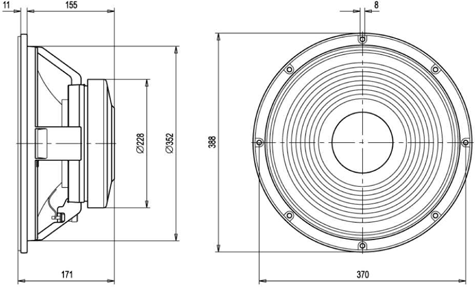

MOUNTING INFORMATION |
|
|
|
|
