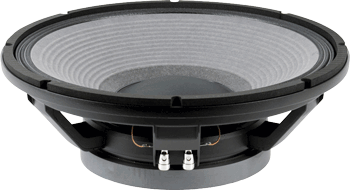

BEYMA 15LX60v2 - 15" HIGH POWER WATERPROOF WOOFER
|
|
|
BEYMA 15LX60v2 - 15" HIGH POWER WATERPROOF WOOFER |
|
EXTREMELY LOW DISTORTION WITH A DEFINED TIGHT BASS & SMOOTH MIDS WITH A LARGE PEAK TO PEAK OF 58MM! |
|
|
|
Item Price: $379.95 |
| WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8 ohms |
| AES Power Rating | 700 Watts |
| Program Power | 1,400 Watts |
|
Frequency
Response |
30Hz - 1.5kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 2.2-6.0 ft3 / 60-170 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 47 mm |
| BL Factor | 21.1 N/A |
| Magnetic Assembly Weight | 19.84 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
|
Bolt
Circle Diameter |
14.56"
/ 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.86" / 352mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
| Overall Depth |
5.7"
/ 145mm |
| Net Weight | 21.39 lb. / 10.2 kg. |
| Shipping Weight | 22.92 lb. / 11.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 2.1 mH |
| Mechanical Q (Qms) | 21.23 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .44 |
| Comp. Equivalent Vol. (Vas) | 3.73 ft3 / 105.53 Liters |
| Voice Coil Overhang (Xmax) | 9 mm |
| Surface Area of Cone (Sd)m2 | 0.091 |
| Diaphragm Mass (Mms) | 147 Grams |
| Reference Efficiency | 1.67% |
| Displacement Volume (Vd) | 812 cm3 |
|

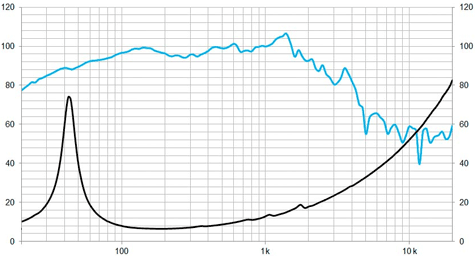

Frequency Response & Impedance Curve |
|
|
|
|

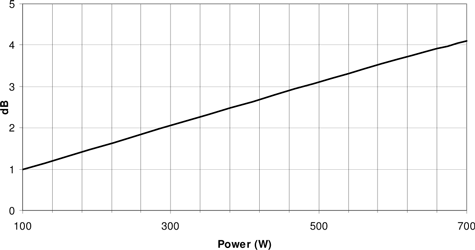

| Power Compression Losses | |
 |
|
|

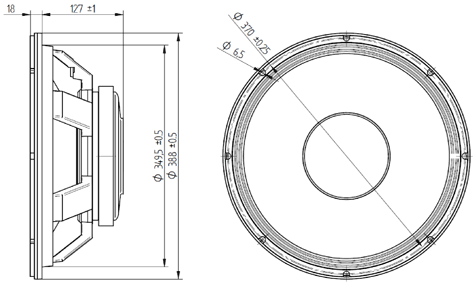

Mounting Dimensions |
|
|
|
|
