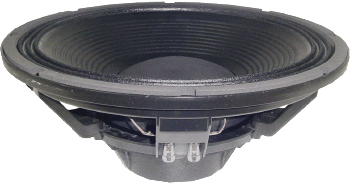

BEYMA 15P1200/ND - 15" HIGH POWER NEODYMIUM WOOFER
|
|
|
BEYMA 15P1200/ND - 15" HIGH POWER NEODYMIUM WOOFER |
|
NEW DUO TECHNOLOGY 4" VOICE COIL HANDLES A STRONG 2,400 WATTS & WEIGHS 17LBS.! |
|
|
|
BEYMA 15P1200ND |
|
Item Price: $329.99 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,200
Watts |
| Program Power |
2,400
Watts |
|
Frequency
Response |
30Hz - 2.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 25 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 52 mm |
| BL Factor | 26.3 N/A |
| Magnetic Assembly Weight | 13.2 lb. / 6 kg. |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.86" / 352mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
|
Overall
Depth |
6.1" / 155mm |
|
Net
Weight |
16.94 lb. / 7.7 kg. |
| Shipping Weight | 19.14 lb. / 8.7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Coil Inductance (Le) | 2.3 mH |
| Mechanical Q (Qms) | 7.73 |
| Electrical Factor(Qes) | .33 |
| Total Q (Qts) | .31 |
| Comp. Equivalent Vol. (Vas) | 2.97 ft3 / 84 Liters |
| Voice Coil Overhang (Xmax) | 9.5 mm |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Reference Efficiency | 2.3% |
| Displacement Volume (Vd) | 815 cm3 |

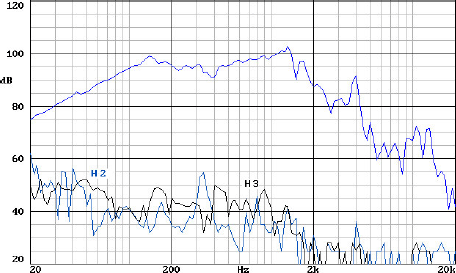

| Frequency Response & Distortion Curves | |
 |
|

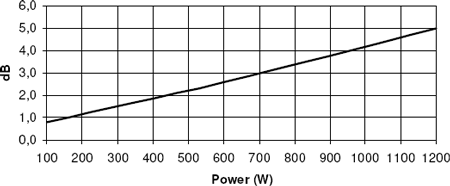

| Power Compression Losses | |
 |
|

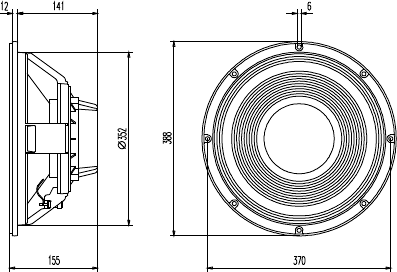

| Mounting Dimensions | |
 |
|
