BEYMA 21SW1600ND - 21" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 21SW1600ND - 21" EXTREME HIGH POWER WOOFER |
|
EXTREME HIGH POWER OF 3,200 WATTS PROGRAM, LARGE 5" VOICE COIL W/ A 15.0MM XMAX! |
|
|
|
BEYMA 21SW1600ND |
|
NO LONGER AVAILABLE |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
21" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,600
Watts |
| Program Power |
3,200
Watts |
|
Frequency
Response |
25Hz
- 1.2kHz |
| Maximum Crossover Frequency | 200Hz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
5"
/ 126mm |
| Recom. Enclosure Volume | 3.5-8.75 ft3 / 100-250 Liters |
| Voice Coil Length | 35 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 60 mm |
| BL Factor | 32 N/A |
| Magnetic Assembly Weight | 16.7 lb. / 7.59 kg. |
|
Mounting Information |
|
|
Overall Diameter |
21.65" / 550mm |
| Bolt Circle Diameter | 20.71" / 526mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 19.45" / 494mm |
| - Rear Mount | 20.12" / 511mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.70 ft3 / 20 Liters |
| Overall Depth | 9.64" / 245mm |
|
Net
Weight |
32.85 lb. / 14.9 kg. |
|
Shipping Weight |
42.02 lb. / 19.1 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 33 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 3.7 mH |
| Mechanical Q (Qms) | 8.37 |
| Electrical Factor (Qes) | .40 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 9.46 ft3 / 268 Liters |
| Voice Coil Overhang (Xmax) | 15.0 mm |
| Surface Area of Cone (Sd)m2 | 0.1734m2 |
| Reference Efficiency | 2.31% |
| Displacement Volume (Vd) | 2514 cm3 |

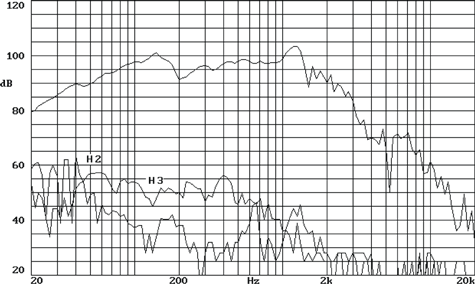

| Frequency Response & Distortion Curves | |
 |
|

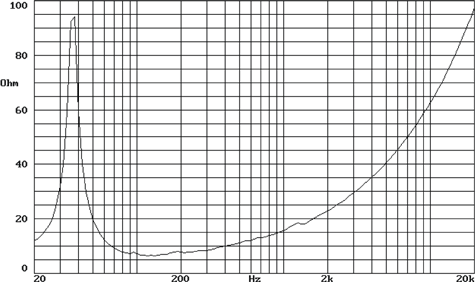

| Free Air Impedance Curve | |
 |
|

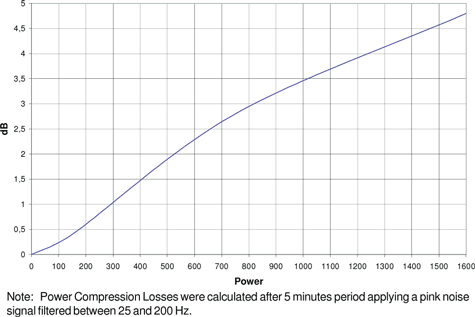

| Power Compression Loss | |
 |
|
| Drawing | |
 |
|
