BEYMA 6XC200ND - 6.5" COAXIAL SPEAKER
|
|
|
BEYMA 6XC200ND - 6.5" COAXIAL SPEAKER |
|
THE NEW BEYMA 6XC200ND COAXIAL SPEAKER SOUNDS VERY SMOOTH, HANDLES 400 WATTS PROGRAM & WEIGHS 4.18LBS.! |
|
|
|
NEW BEYMA 6XC200Nd |
|
Item Price: $289.95 |
|
|
COAXIAL MODEL |
6XC200Nd |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power |
400
Watts |
|
Frequency
Response |
60Hz
- 20kHz |
|
High Frequency Sensitivity (1W/1m) |
102dB |
| Low Frequency Sensitivity (1W/1m) | 92dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| Recom. Enclosure Volume | .21-.71 ft3 / 6-20 Liters |
| Voice Coil Length | 14 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 18 mm |
| BL Factor | 10.1 N/A |
|
Mounting Information |
|
|
Overall Diameter |
6.4"
/ 162.5mm |
| Bolt Circle Diameter |
6.79"
/ 172.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.72" / 145.3mm |
| - Rear Mount | 5.72" / 145.3mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .55 Liters |
|
Overall
Depth |
3.35"
/ 85mm |
|
Net
Weight |
4.18 lb. / 1.9 kg. |
| Shipping Weight | 5.5 lb. / 2.5 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 65 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 3.58 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .3 |
| Comp. Equivelant Vol. (Vas) | .29 ft3 / 8.25 Liters |
| Voice Coil Overhang (Xmax) | 5.1 mm |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Reference Efficiency | .74% |
| Displacement Volume (Vd) | 68.85 cm3 |
|

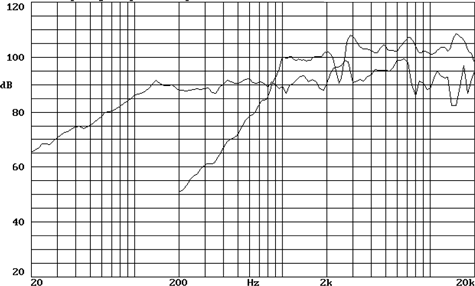

Predicted Low Frequency Response |
|
|
|
|
|

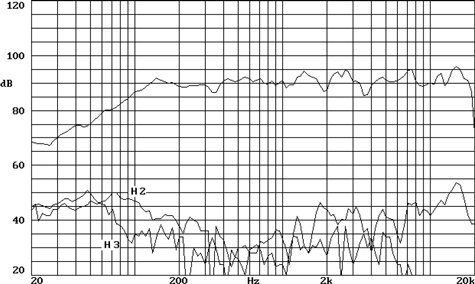

Frequency Response & Distortion Curves |
|
|
|
|
|

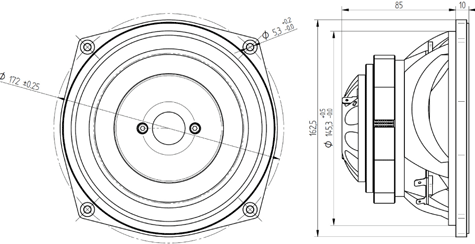

Mounting Dimensions |
|
|
|
|
