BEYMA 8MI100 - 8" PRO MIDRANGE SPEAKER
|
|
|
BEYMA 8MI100 - 8" PRO MIDRANGE SPEAKER |
|
POWERFUL 500 WATT 8" MIDRANGE SPEAKER HAS VERY LOW DISTORTION! |
|
|
|
BEYMA 8MI100 |
|
Item Price: $159.95 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
150Hz
- 7.0KHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| Voice Coil Length | 9 mm |
| Air Gap Height | 7 mm |
| BL Factor | 9.8 N/A |
| Magnetic Assembly Weight | 6.17 lb. / 2.8 kg. |
|
Mounting Information |
|
| Overall Diameter | 8.35" / 212mm |
| Bolt Circle Diameter | 7.8" / 198mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.12" / 181mm |
| - Rear Mount | 7.2" / 183mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.056 ft3 / 1.5 Liters |
|
Overall
Depth |
3.7" / 94mm |
|
Net
Weight |
6.83 lb. / 3.1 kg. |
| Shipping Weight | 7.15 lb. / 3.25 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper (Light & Stiff) |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Spider | Cotton |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 90 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 8.5 |
| Electrical Factor(Qes) | .6 |
| Total Q (Qts) | .56 |
| Comp. Equivalent Vol. (Vas) | .46 ft3 / 13 Liters |
| Voice Coil Overhang (Xmax) | 1.0 mm |
| Diaphragm Mass (Mms) | 17 Grams |
| Reference Efficiency | 1.5% |
| Displacement Volume (Vd) | 22.0 cm3 |

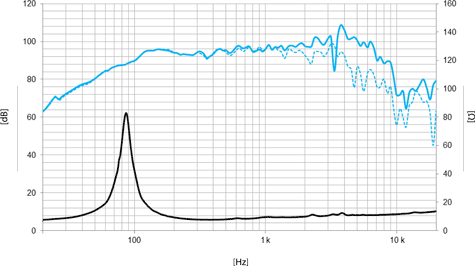

| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|

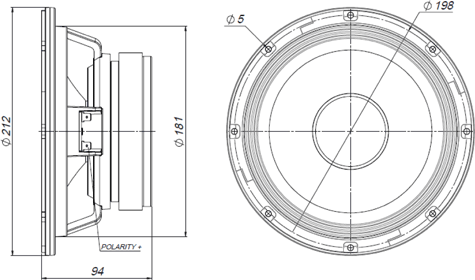

| MOUNTING INFORMATION | |
 |
|
