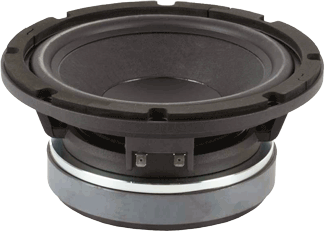

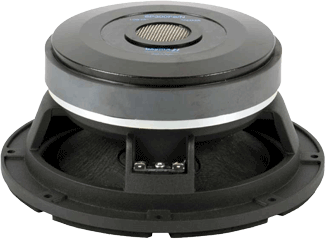

BEYMA 8P300Fe/N - 8" MID-BASS/BASS SPEAKER

THE BEYMA 8P300Fe/N  HAS A TIGHT DEEP BASS WITH NICE EXTNEDED MIDS THAT SOUND VERY NATURAL!

Beyma 8P300FeNBeyma 8P300FeN

BEYMA 8P300Fe/N

8 Ohms

Item Price: $169.99

16 Ohms

Item Price: $169.99

WOOFER MODEL - 8P300Fe/N

Specifications

Nominal Basket Diameter

8" / 200mm

Impedance

8 or 16 ohms

AES Power Rating

300 Watts

Program Power  600 Watts

Frequency Response

55Hz - 8.0kHz

Sensitivity (1W/1m)

94dB

Voice Coil Diameter

2.5" / 62.4mm

Recom. Enclosure Volume .35-1.06 ft3  /  10-30 Liters
Voice Coil Length 15 mm
Air Gap Height 7 mm
X Damage (peak to peak) 24 mm
BL Factor 11.6 N/A

Mounting Information

Overall Diameter 8.33" / 211.5mm
Bolt Circle Diameter 7.81" / 198.3mm
Baffle Cutout Diameter- 7.125" / 181mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.053 ft3  /  1.5 Liters
Overall Depth 3.84" / 97.5mm
Net Weight 8.82 lb. / 4 kg.
Shipping Weight 9.37 lb. / 4.25 kg.

Materials

Basket Die-Cast Aluminum
Cone Carbon Fiber / Paper
Spider Conex
Surround Santoprene
Voice Coil Aluminum Wire
Former Fiber Glass
Metal Parts Anti-Corrosion
Magnet High Currie Temperature Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 53 Hz
Impedance (Re) 5.2 ohms
Coil Inductance (Le) .4 mH
Mechanical Q (Qms) 14.3
Electrical Factor (Qes) .32
Total Q (Qts) .31
Comp. Equivelant Vol. (Vas) .88 ft3 / 24.8 Liters
Voice Coil Overhang (Xmax) 6.0 mm
Moving Mass (Mms) 25 Grams
Surface Area of Cone (Sd) 0.0220m2
Reference Efficiency 1.1%
Displacement Volume (Vd) 132 cm3

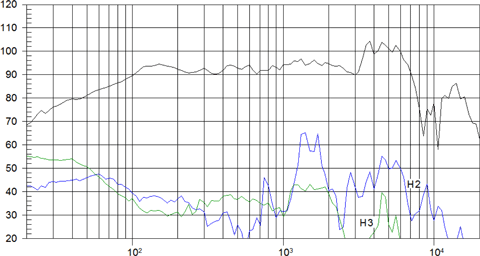

Frequency Response & Distortion Curves

Beyma 8P300FeN Frequency

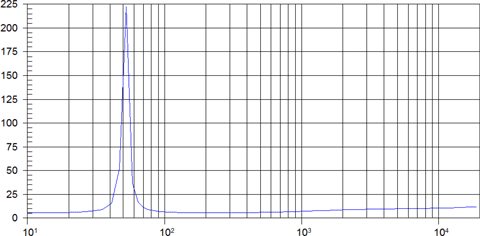

Impedance

Beyma 8P300FeN Impedance

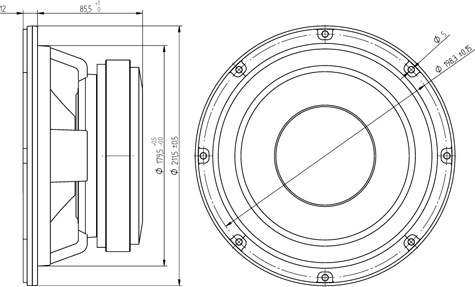

Mounting Dimensions
