BEYMA CP22 - 1" H.F. BULLET TWEETER

THE BEYMA CP22 HAS VERY SMOOTH HIGHS IN AN ATTRACTIVE BRUSHED ALUMINUM FINISH!

Beyma CP22Beyma CP22

BEYMA CP22

Item Price: $119.95

CP22-Dia replacement diaphragm Item price: $64.99

H.F. DRIVER MODEL

CP22

Specifications

Impedance

8 ohms

Minimum Impedance

8.5 ohms @ 9.0 khz

D.C. Resistance 6.1 ohms
AES Power Rating 25 Watts
Program Power  50 Watts
Sensitivity (1W/1m) 107dB SPL

Frequency Response

4kHz - 20kHz

Recommended Crossover 5.0 kHz or higher
Dispersion (H x V) 40 Conical
Voice Coil Diameter 1.5" / 37.6mm
Magnetic Assembly Weight 2.64 lb. / 1.2 kg.
Flux Density 1.55T
BL Factor 5.2 N/A

Mounting Information

Overall Diameter 4" x 4" / 102mm x 102mm
Overall Depth 2.79" / 71mm
Baffle Cutout Dimensions 3.62" / 92mm
Bolt Circle Diameter 4.21" / 107mm
Net Weight 3.5 lb. / 1.6 kg.
Shipping Weight 3.67 lb. / 1.67 kg.

Materials

Diaphragm Aluminum
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Magnet Ferrite

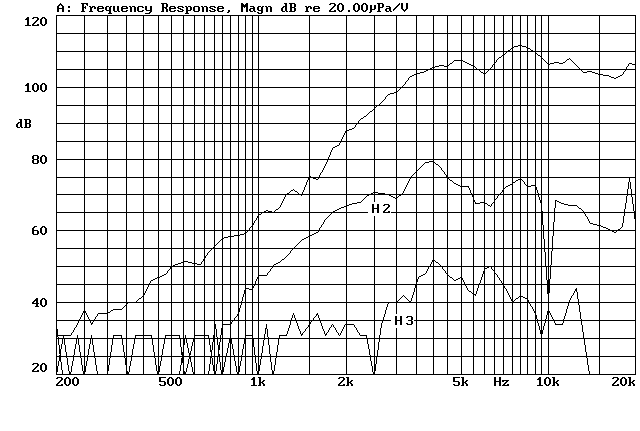

Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m

Dimensional Drawing
