TD-194 - 1" 90x 40 Constant Directivity Horn

SMOOTH RESPONSE FROM THIS HIGH QUALITY CONSTRUCTED CAST ALUMINUM 1" HORN!

Beyma TD-194

Item Price: $99.95

HORN MODEL BEYMA TD-194

SPECIFICATIONS

Type

Constant Directivity

Throat Size

1" / 25mm

Dispersion

90x 40

Lowest Rec. Crossover

1200Hz

Construction Cast Aluminum

Net Weight

2.2 lbs. / 1.0kg

MOUNTING INFORMATION

Overall Width 7.95" / 202mm
Overall Height

7.95" / 202mm

Overall Depth 5.7" / 145mm
Cutout Width 6.97" / 177mm
Cutout Height 5.59" / 142mm
Mounting Type Bolt On
3 Holes Equally Spaced On Diameter 2.24"  /  57 mm

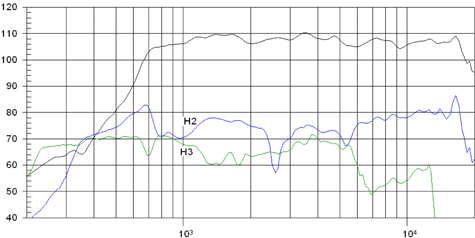

FREQUENCY RESPONSE GRAPH

Beyma TD-194 Frequency Response

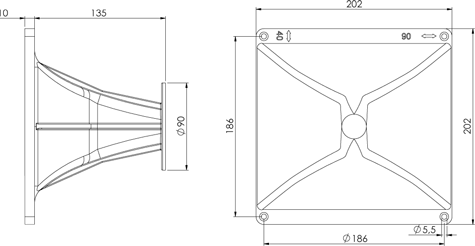

DIMENSIONAL DRAWING

Beyma TD-194 Drawing

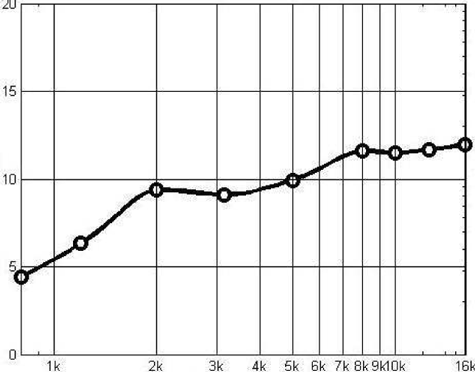

DIRECTIVITY

Beyma TD-194 Directivity

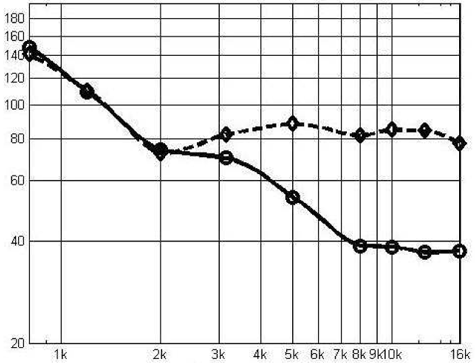

BEAMWIDTH

Beyma TD-194 Beamwidth
