BEYMA TD-460/N - 2" 60x 40 HORN

QUALITY BEYMA HORN THAT DELIVERS NATURAL SOUND REPRODUCTION!

Beyma TD460 Horn

  Buy a Beyma TD460 Horn

Item Price: $199.95

HORN MODEL

BEYMA TD-460/N

Specifications

Type

Constant Directivity

Throat Size

2" / 49mm

Dispersion

60x 40

Lowest Rec. Crossover

800Hz

Construction Rigid Polyurethane Foam

Net Weight

4.4 lbs. / 2.0kg

Dimensions

Overall Width 16.54" / 420mm
Overall Height 10.63" / 270mm
Overall Depth 8.94" / 227mm
Cutout Width 14.37" / 365mm
Cutout Height 9.25" / 235mm
Mounting Type Bolt On
4 Holes Equally Spaced On Diameter 4"  /  101mm

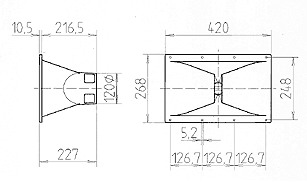

HORN DRAWING

Beyma TD460 Horn drawing
