TD-WL4 - 90x 20 Constant Directivity Line Array Horn

SMOOTH RESPONSE FROM THIS HIGH QUALITY CONSTRUCTED CAST ALUMINUM 1" HORN!

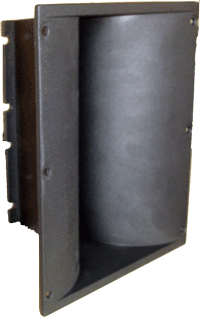

Beyma TD-WL4

Item Price: $239.95

HORN MODEL BEYMA TD-WL4

SPECIFICATIONS

Type

Constant Directivity

Throat Size

.47" Wide  X 8.19" Height

Dispersion

90x 20

Lowest Rec. Crossover

800Hz

Directivity Factor 60
Directivity Index 15.5 dB
Construction Cast Aluminum

Net Weight

3.3 lbs. / 1.5kg.

Shipping Weight 3.96 lbs. / 1.8kg.

MOUNTING INFORMATION

Overall Width 8.26" / 210mm
Overall Height

10.23" / 260mm

Overall Depth 5.79" / 147mm
Cutout Width 6.85" / 174mm
Cutout Height 9.72" / 247mm
Mounting Type Bolt On

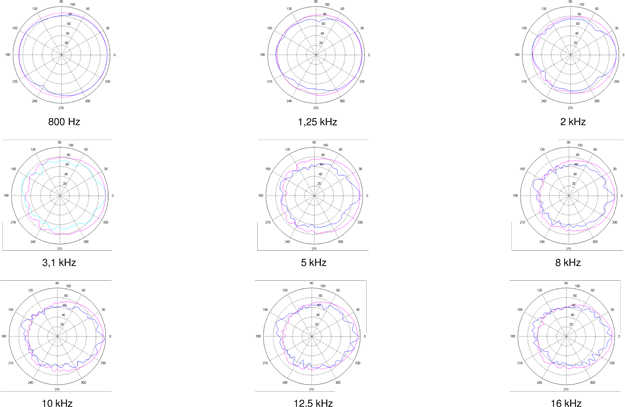

POLAR RESPONSE GRAPHS

Beyma TD-WL4 Polar Resonse

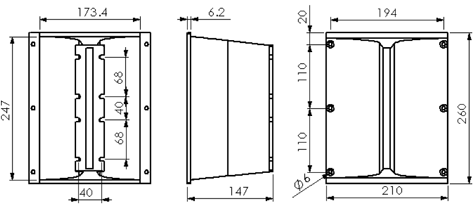

DIMENSIONAL DRAWING

Beyma TD-WL4 Drawing

DIRECTIVITY

Beyma TD-WL4 Directivity

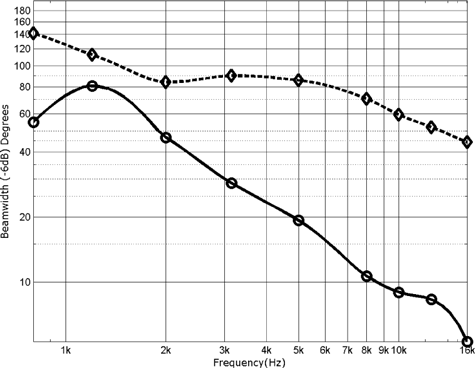

BEAMWIDTH

Beyma TD-WL4 Beamwidth
