BEYMA AST05 - 1" H.F. BULLET TWEETER
|
|
|
BEYMA AST05 - 1" H.F. BULLET TWEETER |
|
THE BEYMA AST-05 HAS A VERY SMOOTH EXTENDED HIGHS UP TO 22KHZ IN A SMALL PROFILE AND WITH AN ATTRACTIVE ALUMINUM FINISH! |
|
|
|
BEYMA AST05 |
|
Item Price: $298.00/Pair |
|
Replacement Diaphragm
Item
Price: $89.00/Pair |
|
|
H.F. DRIVER MODEL |
AST05 |
|
Specifications |
|
|
Impedance |
4 ohms |
|
AES
Power Rating |
25 Watts |
| Program Power | 50 Watts |
|
Sensitivity
(1W/1m) |
107dB 1w @ 1m |
|
Frequency
Response |
2.5kHz -
22kHz |
| Recommended Crossover | 3.7 kHz or higher |
| Voice Coil Diameter |
1.02"
/ 25.8mm |
|
Mounting Information |
|
| Overall Diameter | 2.36" / 60mm |
| Overall Depth | 2.68" / 68mm |
| Baffle Cutout Dimensions | 2.3" / 58.7mm |
| Bolt Circle Diameter | 2.03" / 51.5mm |
|
Materials |
|
| Diaphragm | Aluminum |
| Front Cover | Aluminum |
| Magnet | Neodymium |
|

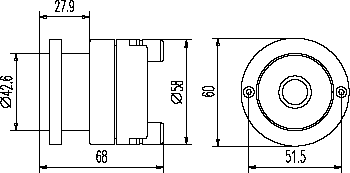

Dimensional Drawing |
|
 |
|
| Freq. Response & Distortion Curves | |
 |
|
