COMPETITION SERIES
BEYMA PRO 65ND - 6.5" NEO MIDRANGE SPEAKER
|
|
|
COMPETITION SERIES |
|
BEYMA PRO 65ND - 6.5" NEO MIDRANGE SPEAKER |
|
BEYMA PRO 65ND 6.5" MIDRANGE HAS A LIGHTWEIGHT NEO MAGNET & VERY HIGH 100DB SPL! |
|
|
|
Item Price: $229.95/Each |
|
WOOFER MODEL |
PRO 65ND |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5 |
|
Impedance |
4
ohms |
|
AES
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
150Hz
- 8.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
1.5" / 38.5mm |
| BL Factor | 8.2 N/A |
|
Mounting Information |
|
|
Overall Diameter |
6.5" / 165mm |
|
Bolt
Circle Diameter |
6.14"
/ 156mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.67" / 144mm |
| No. Of Mounting Holes | 4 |
|
Overall
Depth |
2.74"
/ 70mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 215 Hz |
| Impedance (Re) | 3.5 ohms |
| Coil Inductance (Le) | .35 mH |
| Mechanical Q (Qms) | 8.0 |
| Electrical Factor (Qes) | .51 |
| Total Q (Qts) | .48 |
| Comp. Equivelant Vol. (Vas) | .074 ft3 / 2.1 Liters |
| Surface Area of Cone (Sd)m2 | 0.140 |
| Reference Efficiency | 4% |

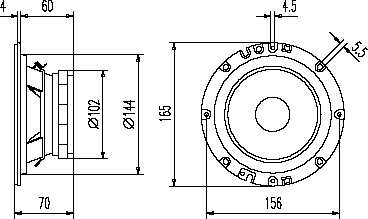

| Mounting Dimensions | |
 |
|
|

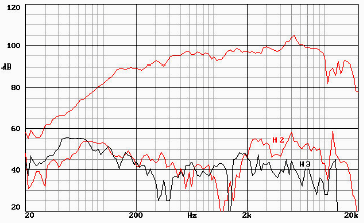

Frequency Response & Distortion Curves |
|
 |
|
