COMPETITION SERIES

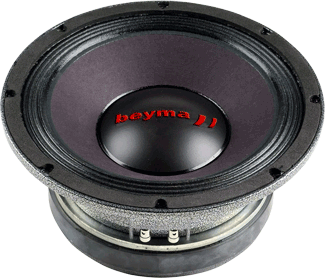

BEYMA PRO 8MI - 8" MIDRANGE SPEAKER
|
|
|
COMPETITION SERIES |
|
BEYMA PRO 8MI - 8" MIDRANGE SPEAKER |
|
THIS BEYMA 8" MIDRANGE HAS HIGH SPL OF 98DB W/ 400 WATTS POWER HANDLING! |
|
|
|
Item Price: $209.95/Each |
|
WOOFER MODEL |
PRO 8MI |
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power |
400
Watts |
|
Frequency
Response |
150Hz
- 7.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| BL Factor | 7.6 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.35" / 212mm |
|
Bolt
Circle Diameter |
7.8"
/ 198mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.17" / 182mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
3.74"
/ 95mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 86 Hz |
| Impedance (Re) | 3.4 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 10.4 |
| Electrical Factor (Qes) | .56 |
| Total Q (Qts) | .53 |
| Comp. Equivelant Vol. (Vas) | .49 ft3 / 14 Liters |
| Surface Area of Cone (Sd)m2 | 0.022 |
| Reference Efficiency | 1.5% |

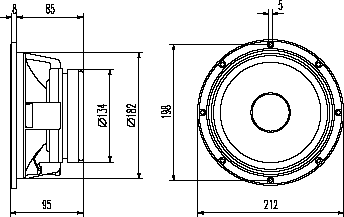

| Mounting Dimensions | |
 |
|
|

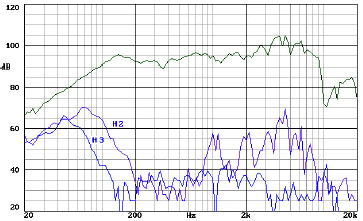

Frequency Response & Distortion Curves |
|
 |
|
