BEYMA TPL-200/H - PLEATED TWEETER

DELIVERS A INCREDIBLY SMOOTH NATURAL SOUND WITH HIGH POWER HANDLING & EXTENDED HIGHS TO 23KHZ LIKE A BERYLLIUM DIAPHRAGM!

Beyma TPL-200H Pleated tweeter Horn

NEW BEYMA TPL-200/H

Item Price: $535.95

VERY LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW.

TWEETER DRIVER MODEL  - TPL-200/H

Specifications

Impedance 8 ohms
D.C. Resistance 4.9 ohms
AES Power Rating 120 Watts above 1.0kHz
Program Power 240 Watts above 1.0kHz
Sensitivity (1W/1m) 104dB SPL
Frequency Response 1kHz - 23kHz
Dispersion 80H x 30V
Recommended Crossover 1.0 kHz or higher(12dB/oct)

Mounting Information

Overall Height 9.05" / 230mm
Overall Width 9.05" / 230mm
Overall Depth 5.98" /152mm
Cutout Height 7.68" / 195.1mm
Cutout Width 7.68" / 195.1mm
Net Weight 7.82 lb. / 3.55 kg.
Shipping Weight 8.48 lb. / 3.85 kg.

Freq. Response & Distortion Curves

Beyma TPL-200H Frequency Response

Note: On axis frequency response measured in anechoic chamber, 1W @ 1m

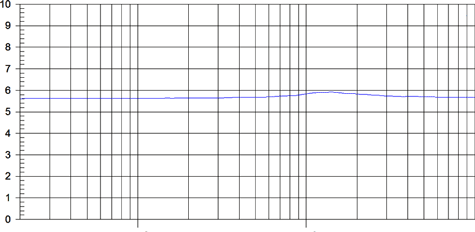

Free Air Impedance Curve

Beyma TPL-200H Impedance

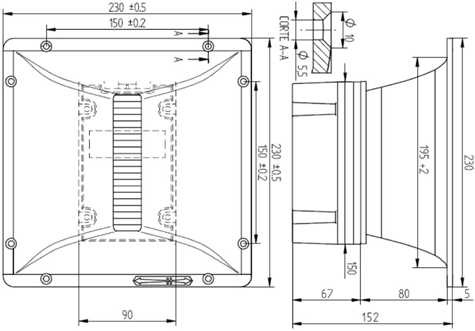

Dimensional Drawing

Beyma TPL-200H Dimensions

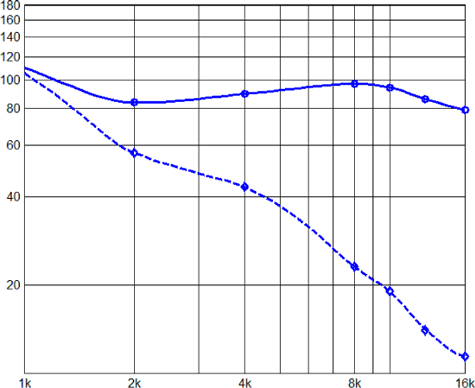

Beamwidth (-6dB)
Beyma TPL-200H Beamwidth
Directivity Index
Beyma TPL-200H Directivity
