BEYMA TPL-150H - PLEATED HORN TWEETER
|
|
|
BEYMA TPL-150H - PLEATED HORN TWEETER |
|
HORN TWEETER THAT DELIVERS AN EXTREMELY SMOOTH SOUND W/ EXTENDED HIGHS TO 23KHZ LIKE A BERYLLIUM DIAPHRAGM! |
|
|
|
BEYMA TPL-150H |
|
Item Price: $619.95 |
|
|
Beyma TPL150H-Dia - Replacement Diaphragm
|
|
|
VERY LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
TWEETER DRIVER
MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
| D.C. Resistance | 4.9 ohms |
|
AES
Power Rating |
80 Watts above 1.0kHz |
| Program Power | 160 Watts above 1.0kHz |
| Sensitivity (1W/1m) | 102dB SPL |
| Frequency Response | 700Hz - 23kHz |
| Dispersion | 80°H x 30°V |
| Recommended Crossover | 1.0 kHz or higher(12dB/oct) |
|
Mounting Information |
|
| Overall Height | 9.05" / 230mm |
| Overall Width | 9.05" / 230mm |
| Overall Depth | 5.8" / 148mm |
| Cutout Height | 7.68" / 195mm |
| Cutout Width | 7.68" / 195mm |
| Net Weight | 6.39 lb. / 2.9 kg. |
| Shipping Weight | 7.15 lb. / 3.25 kg. |
|
Freq. Response & Distortion Curves |
|
|
|
|
|

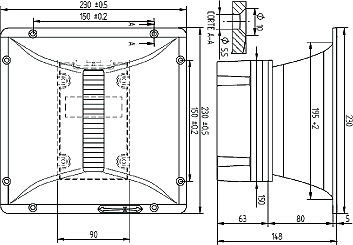

Dimensional Drawing |
|
|
|
|
|
-6dB Beamwidth |
|
|
Note: Horizontal beamwidth is represented by heavy line. Vertical beamwidth is represented by the discontinous
line. |
|
|

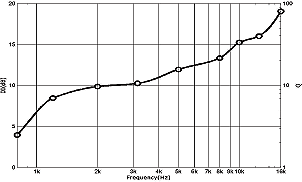

Directivity Index |
|
|
|
|
