TD-8060 - 1" 80x 60 Constant Directivity Horn

THE BEYMA TD8060 IS AN AFFORDABLY PRICE COMPACT 1" HORN!

Beyma TD8060Beyma TD8060

Item Price: $16.95

HORN MODEL BEYMA TD-8060

SPECIFICATIONS

Type

Constant Directivity

Throat Size

1" / 25mm

Dispersion

80x 60

Lowest Rec. Crossover

1500Hz

Construction Polycarbonate

Net Weight

.28 lbs. / .13kg

MOUNTING INFORMATION

Overall Width 5.51" / 140mm
Overall Height

5.51" / 140mm

Overall Depth 2.65" / 67.4mm
Cutout Width 4.45" / 113mm
Cutout Height 5.12" / 130mm
Mounting Type Bolt On
2 Holes Equally Spaced On Diameter 3.0"  /  76.2 mm

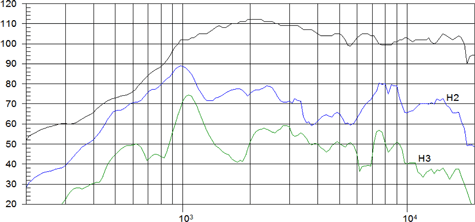

FREQUENCY RESPONSE GRAPH

Beyma TD-8060 Frequency

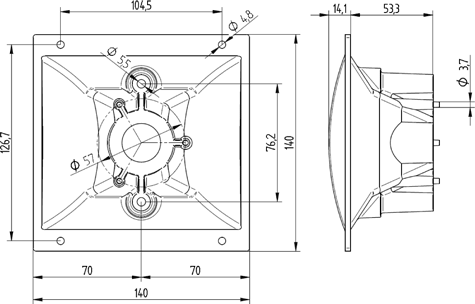

DIMENSIONS

Beyma TD-8060 Dimensions
