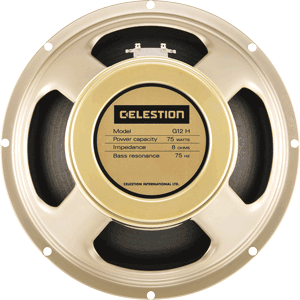

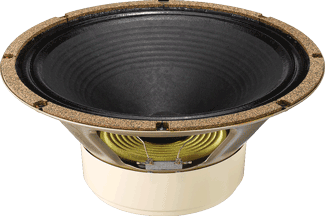

Celestion G12H-75 Creamback
|
|
|
Celestion G12H-75 Creamback |
|
Celestion G12H-75 Creamback 12 inch guitar speaker has a thick tight sound and is very articulate in the mids & highs! |
|
|
G12H-75 Creamback-8 - 8 ohms
Item Price: $189.00 |
|
G12H-75 Creamback-16 - 16 ohms
Item Price: $189.00 |
|
SPEAKER
MODEL |
G12H-75 Creamback |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
or 16 ohms |
|
RMS
Power Rating |
75
Watts |
|
Frequency
Response |
70Hz
- 5kHz |
| Resonant Frequency (fs) | 75Hz |
|
Sensitivity
(1W/1m) |
100dB |
| DC Resistance (Re) | 6.37Ω / 12.5Ω |
| Voice Coil Diameter | 1.75" / 44mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Cone | Paper |
| Voice Coil | Rounded Copper |
| Magnet | Ceramic |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.17" / 309mm |
| Bolt Circle Diameter | 11.69" / 297mm |
| Cutout Diameter | 11.1" / 283mm |
| Overall Depth | 5.1" / 130mm |
| Mounting Hole Dimensions | 0.31" / 7.9mm |
| Number Of Mounting Holes | 8 |
| Magnet Diameter | 5.4" / 138mm |
| Magnet Depth | 1.73" / 44mm |
| Net Weight | 10.4lbs. / 4.7kg. |
|

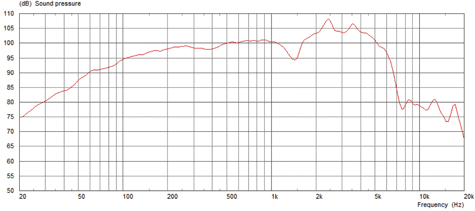

FREQUENCY RESPONSE |
|
|
|
|
