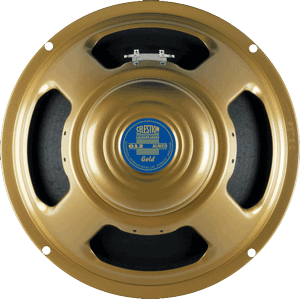

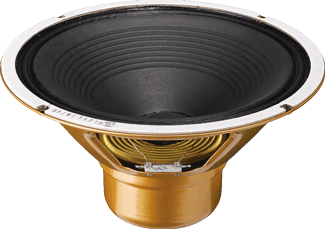

Celestion Gold 12 - Alnico Magnet
|
|
|
Celestion Gold 12 - Alnico Magnet |
|
Celestion Gold 12 inch guitar speaker has a nice well balanced articulate sound with high power handling! |
|
|
Gold-8 - 8 ohms
Item Price: $319.95 |
|
Gold-16 - 16 ohms
Item Price: $319.95 |
|
SPEAKER
MODEL |
Gold 12 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
or 16 ohms |
|
RMS
Power Rating |
25
Watts |
| Peak Power | 50 Watts |
|
Frequency
Response |
75Hz
- 5kHz |
| Resonant Frequency (fs) | 75 Hz |
|
Sensitivity
(1W/1m) |
100dB |
| DC Resistance (Re) | 6.4Ω / 11.8Ω |
| Voice Coil Diameter | 1.75" / 44.5mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Cone | Paper |
| Voice Coil | Rounded Copper |
| Magnet | Alnico |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.17" / 309mm |
| Bolt Circle Diameter | 11.69" / 297mm |
| Cutout Diameter | 11.1" / 283mm |
| Overall Depth | 6.5" / 165mm |
| Mounting Hole Dimensions | 0.31" / 7.9mm |
| Number Of Mounting Holes | 4 |
| Magnet Diameter | 5" / 128mm |
| Magnet Depth | 2.87" / 73mm |
| Net Weight | 9.3lbs. / 4.2kg. |
|

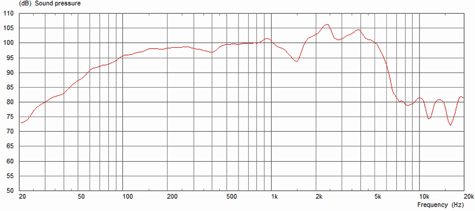

FREQUENCY RESPONSE |
|
|
|
|
