10NDH-3 - 10" LIGHTWEIGHT MIDRANGE / MID-BASS SPEAKER

THE CIARE 10NDH-3 HAS A FLAT & NATURAL SOUNDING MIDRANGE WITH A STRONG TIGHT BASS THAT IS EXTREMELY SMOOTH!

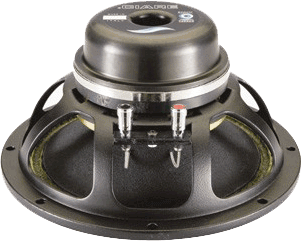

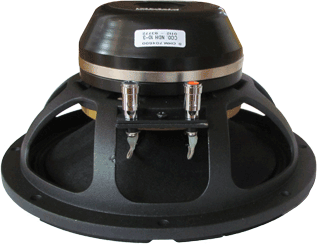

Ciare 10NDH-3Ciare 10NDH-3

Item Price: $219.95

SPEAKER CABINET DESIGN BELOW

SPEAKER MODEL

10NDH-3

SPECIFICATIONS

Nominal Basket Diameter

10" / 250mm

Impedance

8 ohms

AES Power Rating

400 Watts

Program Power 800 Watts

Frequency Response

60Hz - 5kHz

Sensitivity (1W/1m)

96dB SPL

Voice Coil Diameter

3" / 75mm

MOUNTING INFORMATION

Overall Diameter 10.24" / 260mm
Bolt Circle Diameter 9.65" / 245mm
Baffle Cutout Diameter 9.06" / 230mm
Depth 5.12" / 130mm
No. Of Mounting Holes 8
Mounting Hole Diameter .26" / 6.5mm
Net Weight 10.12 lbs./ 4.6 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Surround Doped Nomex Fabric
Surround Shape Two Roll
Suspension Material Doped Nomex Fabric
Voice Coil Aluminum
Former Kapton
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

65.1 Hz
Impedance (Re) 5.52 ohms
Electrical Factor(Qes) .38
Mechanical Q (Qms) 10.6
Total Q (Qts) .36
Compliance Equiv. Vol. (Vas) 22.31 Liters/.79 cu. ft.
Voice Coil Overhang (Xmax) 8.5mm
BL Factor 16.41 T-M
Diaphragm Mass (Mms) 45 grams
Surface Area of Cone (Sd)m2 0.0346m2
Reference Efficiency (%) 1.57%
Coil Inductance (Le) .40mH

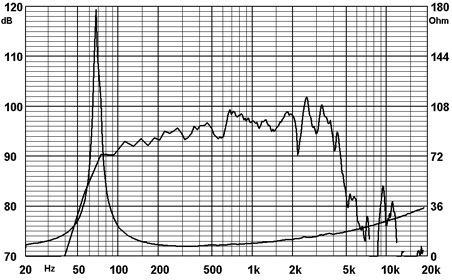

FREQUENCY RESPONSE & IMPEDANCE CURVE

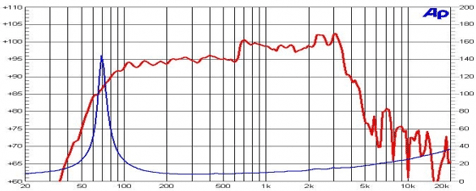

Ciare NDH10-3

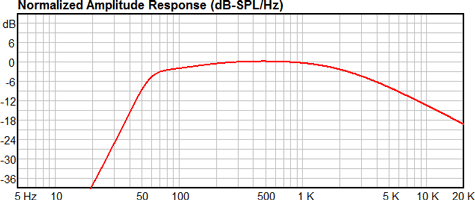

FREQUENCY RESPONSE IN 1.0 CU. FT. PORTED CABINET
  • Internal Cabinet Volume - 1.0 cu. ft.

  • Tuning Frequency- 60Hz

  • Port Diameter - (1) 4"

  • Port Depth - 6.875" Deep

FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
