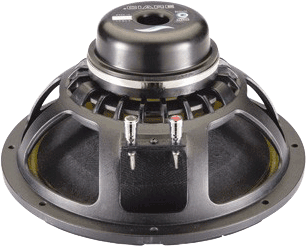

12NDH-3 - 12" LIGHTWEIGHT HIGH EFFICIENCY MIDRANGE SPEAKER

THE CIARE 12NDH-3 IS OUR LOUDEST 12" MIDRANGE SPEAKER THAT IS VERY DETAILED IN THE MIDS WITH AN EMPHASIS ON THE UPPER MIDRANGE!

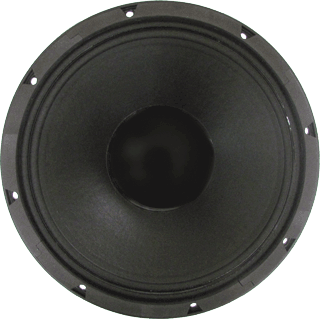

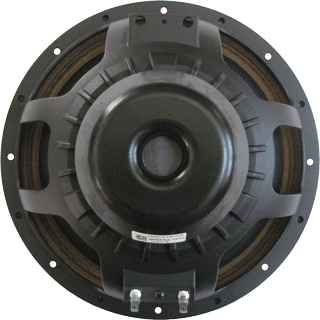

Ciare NDH12-3Ciare NDH12-3

Item Price: $249.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

12NDH-3

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

8 ohms

AES Power Rating

400 Watts

Program Power 800 Watts

Frequency Response

60Hz - 3kHz

Sensitivity (1W/1m)

100dB SPL

Voice Coil Diameter

3" / 75mm

MOUNTING INFORMATION

Overall Diameter 12.4" / 315mm
Bolt Circle Diameter 11.6" / 295mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 6.1" / 155mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 11.0 lbs./ 5.0 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Surround Doped Nomex Fabric
Surround Shape Two Rolls
Voice Coil Aluminum
Former Kapton
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

55.1 Hz
Impedance (Re) 6.1 ohms
Electrical Factor(Qes) .23
Mechanical Q (Qms) 11.36
Total Q (Qts) .22
Compliance Equiv. Vol. (Vas) 66.42 Liters/2.35 cu. ft.
Voice Coil Overhang (Xmax) 6.5mm
BL Factor 21.36 T-M
Diaphragm Mass (Mms) 49.5 grams
Surface Area of Cone (Sd)m2 0.053m2
Coil Inductance (Le) .54mH

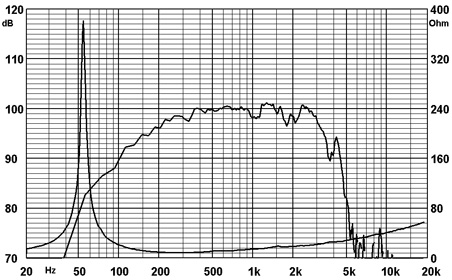

FREQUENCY RESPONSE GRAPH
Ciare NDH12-3

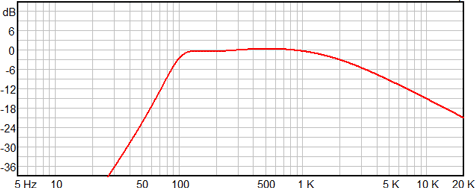

MIDRANGE FREQUENCY RESPONSE IN .9 CU. FT. PORTED CABINET
Ciare NDH12-3 Frequency SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 12"

  • Internal Cabinet Volume - .9 cu. ft.

  • Internal Cabinet Dimensions: 13" Wide x 14" Height x 8.625" Deep

  • Tuning - 95Hz

  • Frequency @ -3dB - 95.51Hz

  • Rectangle Slot Port - 1.25"H x 13" Wide"

  • Port Depth - 3.0" Deep

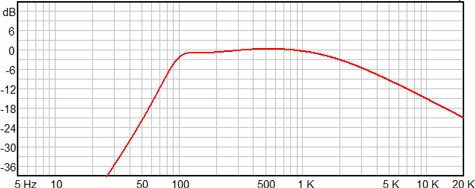

MIDRANGE FREQUENCY RESPONSE IN 2.05 CU. FT. PORTED CABINET
Ciare NDH12-3 Frequency DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 12"

  • Internal Cabinet Volume - 2.05 cu. ft.

  • Internal Cabinet Dimensions: 13" Wide x 30" Height x 9.125" Deep

  • Tuning - 99Hz

  • Frequency @ -3dB - 97.21Hz

  • Rectangle Slot Port - 3"H x 14" Wide"

  • Port Depth - 1.625" Deep
