12NDH-4 - 12" LIGHTWEIGHT NEODYMIUM MID-BASS SPEAKER

THE CIARE 12NDH-4 HAS SUPER SMOOTH MIDS AND NATURAL SOUNDING TIGHT LOWS WITH A 4" VOICE COIL & A HIGH GRADE SOLID SLUG OF NEODYMIUM MAGNET!

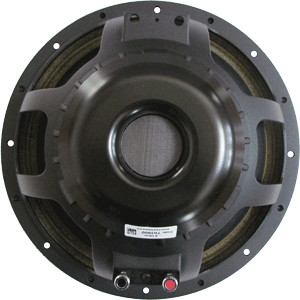

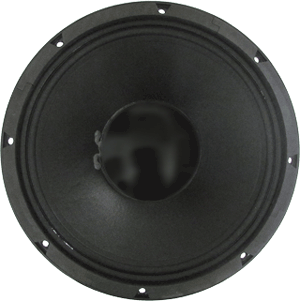

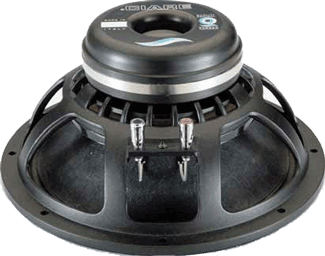

Ciare NDH12-4Ciare NDH12-4

Item Price: $295.95

Temporarily Backordered

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

12NDH-4

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

8 ohms

AES Power Rating

500 Watts

Program Power 1,000 Watts

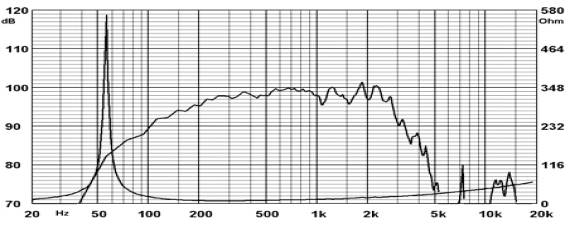

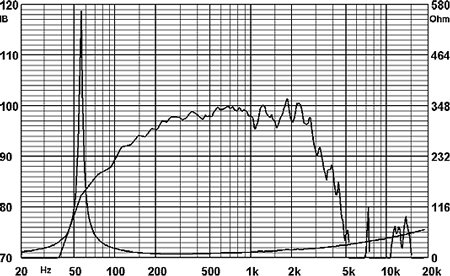

Frequency Response

50Hz - 2kHz

Sensitivity (1W/1m)

98dB SPL

Voice Coil Diameter

4" / 100mm

MOUNTING INFORMATION

Overall Diameter 12.36" / 314mm
Bolt Circle Diameter 11.65" / 296mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 5.83" / 148mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 12.5 lbs./ 5.7 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Surround Doped Nomex Fabric
Surround Shape Two Rolls
Voice Coil Aluminum
Former Fiberglass
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

54 Hz
Impedance (Re) 6.12 ohms
Electrical Factor(Qes) .24
Mechanical Q (Qms) 18.75
Total Q (Qts) .24
Compliance Equiv. Vol. (Vas) 46.26 Liters/1.63 cu. ft.
Voice Coil Overhang (Xmax) 8.0mm
BL Factor 25.16 T-M
Diaphragm Mass (Mms) 74 grams
Surface Area of Cone (Sd)m2 0.053m2
Coil Inductance (Le) .73mH
25 Liter Cabinet: Pink Noise, 20Hz to 20kHz, 12dB/octave, 2 Hour Duration
Ciare NDH12-4

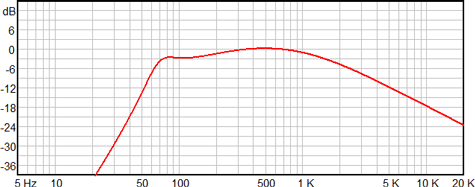

FREQUENCY RESPONSE IN 1.42 CU. FT. PORTED CABINET
Ciare NDH12-4 SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 12"

  • Internal Cabinet Volume - 1.42 cu. ft.

  • Internal Cabinet Dimensions: 13.5" Wide x 18" Height x 10.125" Deep

  • Tuning - 71Hz

  • Frequency @ -3dB - 72.6Hz

  • Rectangle Slot Port - 1.625"H x 13.5" Wide"

  • Port Depth - 6.75" Deep

FREQUENCY RESPONSE IN 2.8 CU. FT. PORTED CABINET
Ciare NDH12-4 DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 12"

  • Internal Cabinet Volume - 2.8 cu. ft.

  • Internal Cabinet Dimensions: 13.5" Wide x 32" Height x 11.25" Deep

  • Tuning - 69Hz

  • Frequency @ -3dB - 73.1Hz

  • Rectangle Slot Port - 3.5"H x 13.5" Wide

  • Port Depth - 5.75" Deep
