15.00SW - 15" EXTENDED LOW FREQUENCY SUBWOOFER

THE CIARE 15.00SW 15" SUBWOOFER SPEAKER DELIVERS DEEP EXTENDED BASS DOWN TO 20HZ THAT IS STRONG YET VERY SMOOTH!

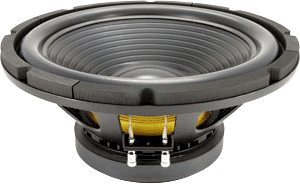

Ciare 15.00SW

New 4 ohm version

Item Price: $409.95

8 ohm version

Item Price: $409.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

15.00SW

SPECIFICATIONS

Nominal Basket Diameter

15" / 380mm

Impedance

4 & 8 ohms

AES Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

20Hz - 200Hz

Sensitivity (1W/1m)

91dB

Voice Coil Diameter

4" / 100mm

Magnetic Gap Depth .4" / 10mm

MOUNTING INFORMATION

Overall Diameter 15.28" / 388mm
Bolt Circle Diameter 14.57" / 370mm
Baffle Cutout Diameter 13.94" / 354mm
Depth 7.0" / 178mm
Flange Thickness .945" / 24mm
Magnet Width 8.66" / 220mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 26.6 lbs./ 12.1 kg.

MATERIALS

Basket Die-Cast Aluminum
Cone Treated Cellulose
Surround Rubber
Surround Shape Half Roll
Suspension Material Doped Nomex Fabric
Voice Coil Copper
Spider Double Nomex
Former Kapton
Connector Type Push Button
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

29Hz
Impedance (Re) 6.7 ohms
Electrical Factor(Qes) .44
Mechanical Q (Qms) 5.6
Total Q (Qts) .41
Compliance Equiv. Vol. (Vas) 111 Liters/3.92cu. ft.
Voice Coil Overhang (Xmax) 14mm
BL Factor 25.0 T-M
Diaphragm Mass (Mms) 220 Grams
Mechanical Compliance (Cms) .97mm/N
Surface Area of Cone (Sd)m2 0.075m2
Reference Efficiency .65%
Coil Inductance (Le) 2.4mH

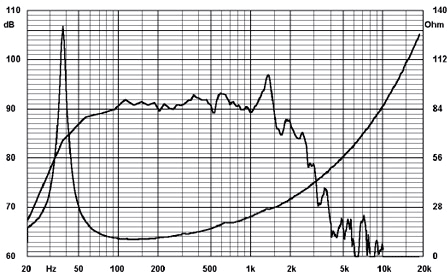

FREQUENCY RESPONSE
IMPEDANCE CURVE
Ciare 15.00SW Impedance
MOUNTING DIMENSIONS
Ciare 15.00SW Dimension
BASS REFLEX(PORTED) SINGLE CABINET SIZE & RESPONSE
Ciare 15.00SW SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 15"

  • Internal Cabinet Volume - 5.5 cu. ft.

  • Internal Cabinet Dimensions: 18" Wide x 24" Height x 22" Deep

  • Tuning - 32Hz

  • Frequency @ -3dB - 29.26Hz

  • Slot Port - 18" Wide x 2" Height

  • Slot Port Depth - 15.25" Deep

BASS REFLEX(PORTED) DUAL CABINET SIZE & RESPONSE
Ciare 15.00SW DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 15"

  • Internal Cabinet Volume - 11 cu. ft.

  • Internal Cabinet Dimensions: 36" Wide x 24" Height x 22" Deep

  • Tuning - 31Hz

  • Frequency @ -3dB - 28.76Hz

  • Slot Port - 36" Wide x 2" Height

  • Slot Port Depth - 15.875" Deep

FOR CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
