Ciare Italian Speakers

FXE15-4 - 15" MID-BASS/BASS SPEAKER

THE CIARE FXE15-4 HAS REALLY CLEAN SMOOTH MIDRANGE & TIGHT POWERFUL BASS!

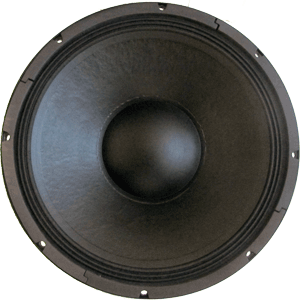

Ciare FXE15-4

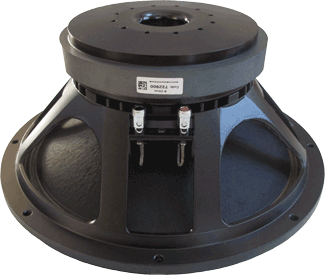

Ciare FXE15-4

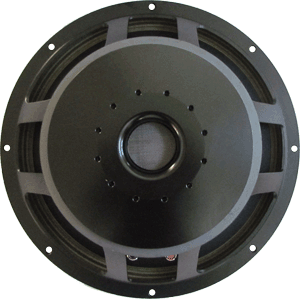

Ciare FXE15-4

Item Price: $299.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

FXE15-4

SPECIFICATIONS

Nominal Basket Diameter

15" / 380mm

Impedance

8 ohms

AES Power Rating

800 Watts

Program Power 1,600 Watts

Frequency Response

30Hz - 1.5kHz

Sensitivity (1W/1m)

97dB SPL

Voice Coil Diameter

4" / 100mm

Rec. Enclosure Volume(Vented) 2.2 - 6.4cu. ft./62.1 - 181.4 Liters

MOUNTING INFORMATION

Overall Diameter 15.28" / 388mm
Bolt Circle Diameter 14.49" / 368mm
Baffle Cutout Diameter 13.94" / 354mm
Depth 6.89" / 175mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 28.38 lbs./ 12.9 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Cone Shape Exponential
Surround Doped Nomex Fabric
Surround Shape 3 Rolls
Voice Coil Copper
Demodulation Ring Aluminum
Former Fiberglass
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

40.6 Hz
Impedance (Re) 5.89 ohms
Electrical Factor(Qes) .42
Mechanical Q (Qms) 12.29
Total Q (Qts) .4
Compliance Equiv. Vol. (Vas) 131.01 Liters/4.63 cu. ft.
Voice Coil Overhang (Xmax) 9.75mm
BL Factor 20.8 T-M
Diaphragm Mass (Mms) .120 kg.
Surface Area of Cone (Sd)m2 0.0855m2
Reference Efficiency 2.02%
Coil Inductance (Le) 1.07mH

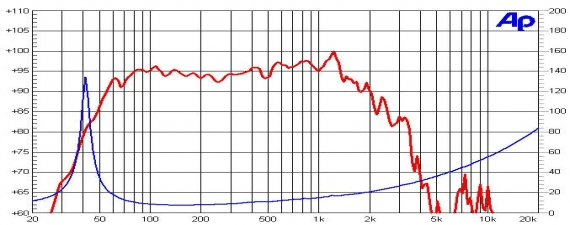

80 Liter Cabinet: Pink Noise, 20Hz to 20kHz, 12dB/octave, 2 Hour Duration
Ciare FXE15-4 Frequency

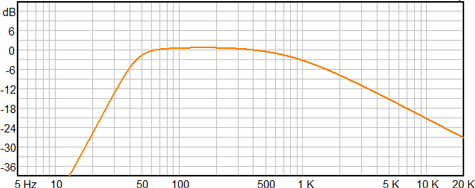

Frequency Response In A 4.5 Cu. Ft. Ported Cabinet
Ciare FXE15-4 Frequency SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 15"

  • Internal Cabinet Volume - 4.5 cu. ft.

  • Internal Cabinet Dimensions: 16.5" Wide x 25" Height x 18.875" Deep

  • Tuning - 45Hz

  • Frequency @ -3dB - 45Hz

  • Slot Port - 16.5" Wide x 2" Height

  • Slot Port Depth - 6.875" Deep

Frequency Response In A 9.0 Cu. Ft. Ported Cabinet
Ciare FXE15-4 Frequency DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 15"

  • Internal Cabinet Volume - 9.0 cu. ft.

  • Internal Cabinet Dimensions: 18.5" Wide x 40" Height x 21" Deep

  • Tuning - 50Hz

  • Frequency @ -3dB - 47.08Hz

  • Rectangle Slot Port - 4" Wide x 18.5" Height

  • Slot Port Depth - 3" Deep
