HW161N - 6.5" SPEAKER

THE CIARE HW161N WORKS GREAT IN 2-WAY SPEAKER CABINETS THAT REQUIRE DEEP BASS AND GOOD CLEAN SMOOTH MIDS!

Ciare HW161N

Item Price: $69.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

HW161N

SPECIFICATIONS

Nominal Basket Diameter

6.5" / 160mm

Impedance

8 ohms

AES Power Rating

80 Watts

Program Power 160 Watts

Frequency Response

40Hz - 5kHz

Sensitivity (1W/1m)

90dB SPL

Air Gap Height 6mm

Voice Coil Diameter

1.26" / 32mm

MOUNTING INFORMATION

Overall Diameter 6.65" / 169mm
Bolt Circle Diameter 6.22" / 158mm
Baffle Cutout Diameter 5.59" / 142mm
Depth 3.2" / 81.5mm
No. Of Mounting Holes 4
Mounting Hole Diameter .2" / 5.0mm
Shipping Weight 3.08 lbs./ 1.4 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Surround Rubber
Surround Shape Half Roll
Former Aluminum
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

47.42 Hz
Impedance (Re) 6.1 ohms
Electrical Factor(Qes) .46
Mechanical Q (Qms) 2.01
Total Q (Qts) .37
Compliance Equiv. Vol. (Vas) 19.92 Liters/.7 cu. ft.
Voice Coil Overhang (Xmax) 3.0mm
BL Factor 7.42 T-M
Diaphragm Mass (Mms) 13.99 grams
Surface Area of Cone (Sd)m2 0.014m2
Reference Efficiency (%) 0.45%
Coil Inductance (Le) .69mH

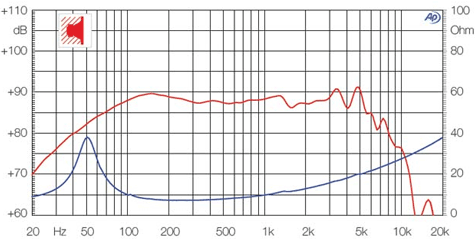

FREQUENCY RESPONSE GRAPH
Ciare HW161N Frequency

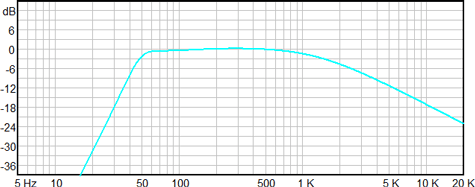

FREQUENCY RESPONSE IN MEDIUM PORTED CABINET
Ciare HW161N Frequency Response
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 6.5"

  • Internal Cabinet Volume - .70 cu. ft.

  • Internal Cabinet Dimensions: 7.5" Wide x 14" Height x 11.5" Deep

  • Tuning - 50Hz

  • Frequency @ -3dB - 51.86Hz

  • Round Port - (1) 3"

  • Port Depth - 9.75" Deep

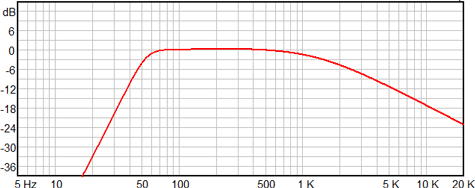

FREQUENCY RESPONSE IN LARGE PORTED CABINET
Ciare HW161N Frequency Response
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 6.5"

  • Internal Cabinet Volume - .85 cu. ft.

  • Internal Cabinet Dimensions: 7.5" Wide x 16" Height x 12.25" Deep

  • Tuning - 50Hz

  • Frequency @ -3dB - 47.72Hz

  • Round Port - (1) 3"

  • Port Depth - 7" Deep

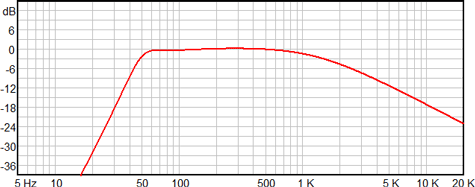

FREQUENCY RESPONSE IN LARGE PORTED CABINET
Ciare HW161N Frequency Response
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 6.5"

  • Internal Cabinet Volume - 1.7 cu. ft.

  • Internal Cabinet Dimensions: 7.5" Wide x 24" Height x 16.375" Deep

  • Tuning - 51Hz

  • Frequency @ -3dB - 48.05Hz

  • Round Ports - (2) 3"

  • Port Depth - 6" Deep

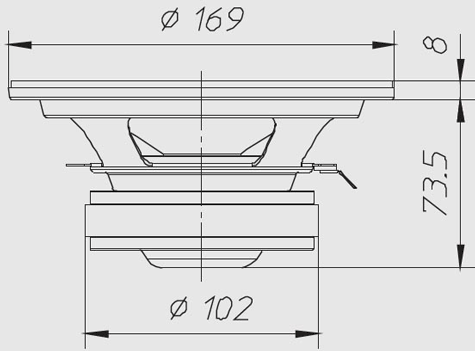

DIMENSIONAL DRAWING
Ciare HW161N Drawing
