Ciare Italian Speakers

HW321 - 12"  MID-BASS / BASS SPEAKER

THE CIARE HW321 DELIVERS A DEEP NATURAL BASS SOUND WITH CLEAN MIDS & GOOD POWER HANDLING OF 150 WATTS AES!

Ciare HW321

Item Price: $139.95

SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

HW321

SPECIFICATIONS

Nominal Basket Diameter

12" / 304mm

Impedance

8 ohms

AES Power Rating

150 Watts

Program Power 300 Watts

Frequency Response

25Hz - 2.5kHz

Sensitivity (1W/1m)

93dB SPL

Air Gap Height 8.0mm

Voice Coil Diameter

2.0" / 50mm

MOUNTING INFORMATION

Overall Diameter 12.4" / 315mm
Bolt Circle Diameter 11.6" / 295mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 5.47" / 139mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Flange Thickness .53" / 13.5mm
Net Weight 10.78 lbs./ 4.9 kg.

MATERIALS

Basket Cast Aluminum
Cone Doped Paper
Surround Rubber
Surround Shape Half Roll
Suspension Material Doped Nomex Fabric
Former Aluminum
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

27 Hz
Impedance (Re) 5.7 ohms
Electrical Factor(Qes) .37
Mechanical Q (Qms) 3.04
Total Q (Qts) .33
Compliance Equiv. Vol. (Vas) 205 Liters/7.24 cu. ft.
Voice Coil Overhang (Xmax) 5.25mm
BL Factor 13.17 T-M
Diaphragm Mass (Mms) 67 grams
Surface Area of Cone (Sd)m2 0.0535m2
Reference Efficiency (%) 1.05%
Coil Inductance (Le) .9mH
FREQUENCY RESPONSE
Ciare HW321 Frequency

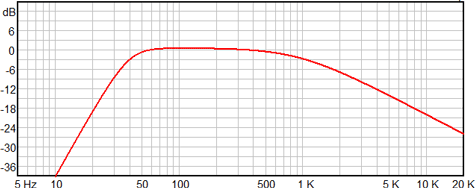

FREQUENCY RESPONSE IN MEDIUM PORTED CABINET
Ciare HW321 Frequency
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 12"

  • Internal Cabinet Volume - 3.19 cu. ft.

  • Internal Cabinet Dimensions: 14" Wide x 25" Height x 15.75" Deep

  • Tuning - 35Hz

  • Frequency @ -3dB - 39.48Hz

  • Round Port - (1) 4"

  • Port Depth - 5.5" Deep

FREQUENCY RESPONSE IN LARGE PORTED CABINET
Ciare HW321 Frequency
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 12"

  • Internal Cabinet Volume - 4.24 cu. ft.

  • Internal Cabinet Dimensions: 14" Wide x 26.5" Height x 19.75" Deep

  • Tuning - 35Hz

  • Frequency @ -3dB - 35.5Hz

  • Round Port - (1) 4"

  • Port Depth - 3" Deep

DIMENSIONAL DRAWING

Ciare HW321 Drawing
