DDS CFD 1.4-60 PRO - 1" 60x 40 HORN

THIS 1.4" FIBERGLASS HORN DELIVERS A DIRECTIVITY FACTOR OF 15.7!



Item Price: $274.95

HORN MODEL

CFD 1.4-60A PRO

SPECIFICATIONS

Type

Constant Directivity

Throat Size

1.4" / 35.6mm

Dispersion

60H x 40V

Sensitivity 113.9dB (+5.9dB nominal gain)

Frequency Response

1kHz - 18kHz

Directivity Factor 15.7
Volume Displacement .14 cu. ft.
Construction Biaxial Stitched Fiberglass
Dampening Material 3/8" Thick End Grain Balsa Wood

Net Weight

4.5 lbs.

MOUNTING INFORMATION

Overall Width

14.5" / 254mm

Overall Height 10" / 368mm
Overall Depth 10.125" / 257mm
Cutout Width 12.5" / 317.5mm
Cutout Height 8.0" / 203.2mm
Mounting Type Bolt On
4 Holes Equally Spaced On Diameter 4" / 101.6 mm

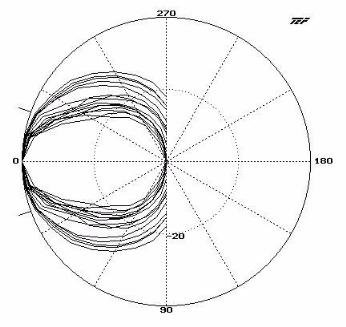

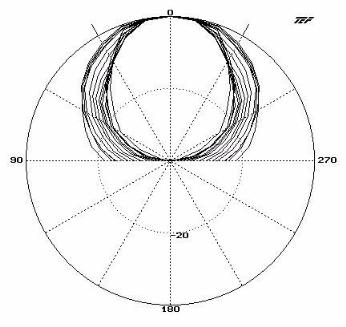

HORIZONTAL & VERTICAL POLAR RESPONSE

630 Hz - 16kHz, 1/3 Octave Center Frequencies
