15CX1000
|
|
15CX1000 |
|
| 15" HIGH OUTPUT COAXIAL SPEAKER |
|
LOUD & SMOOTH TRANSPARENT SOUND W/ A STRONG 850 WATTS AES POWER HANDLING! |
|
|
|
15CX1000 |
|
Item Price: $599.95
|
|
|
COAXIAL MODEL |
15CX1000 |
|
Low Frequency Specifications |
|
|
Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
850 Watts |
| Program Power | 1,200 Watts |
| Peak Power Rating | 3,000 Watts |
|
Sensitivity
(1W/1m) |
98dB SPL |
|
Frequency
Response |
45Hz
- 5.1kHz |
| Recommended Crossover | 1.0kHz |
| Voice Coil Diameter |
4"
/ 100mm |
| BL Factor | 21 TM |
| Recommended Enclosure Volume | 2.47-5.3 cu. ft / 70-150 Liters |
| Magnet | Ferrite |
|
High Frequency Specifications |
|
| Throat Diameter |
1.4" |
| D.C. Resistance | 9 ohms |
| Impedance | 8 ohms |
| AES Power Rating | 75 watts above 1.0kHz |
| Program Power | 150 watts above 1.0kHz |
| Sensitivity (1W/1m) | 107.5dB |
| Frequency Response | 500Hz - 20kHz |
| Recommended Crossover | 1.0kHz @ 12dB/octave |
| Voice Coil Diameter | 3" / 74.6mm |
|
Mounting Dimensions |
|
| Overall Diameter | 15.23" / 387mm |
| Bolt Circle Diameter | 14.6" / 371mm |
| Front Mount Baffle Cutout | 13.9" / 353mm |
| Rear Mount Baffle Cutout | 14.06" / 357mm |
| Total Depth | 8.6" / 218.4mm |
| Flange & Gasket Thickness | .76" / 19.5mm |
| Number Of Mounting Holes | 8 |
| Mounting Hole Diameter | .28" / 7.15mm |
| Net Weight | 31.68 lbs. / 14.4 kg. |
| Shipping Weight | 34.1 lbs. / 15 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.5mH |
| Mechanical Q (Qms) | 6 |
| Electrical Factor(Qes) | .32 |
| Total Q (Qts) | .31 |
| Comp. Equivelant Vol. (Vas) | 132.5L / 4.66 cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |

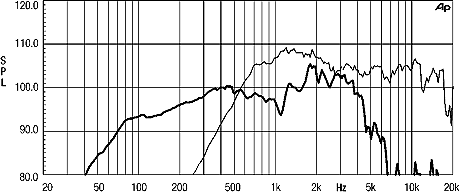

| Frequency Response In 125 Liter Enclosure Tuned To 50Hz | |
| Thin Line Represents High Frequency | |
 |
|
